Underfloor box UDSR4 for PVC duct
Type UDSPD 9035 R4
|Item no. 7400354
|EAN 4012195729846
Item no. / Type
7400354 / UDSPD 9035 R4
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description

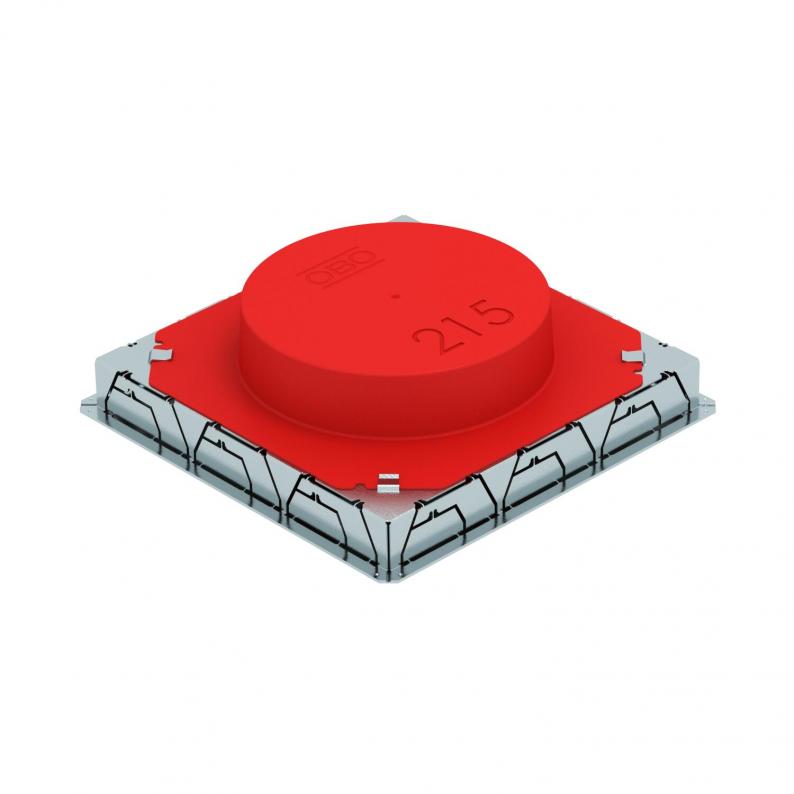

Underfloor outlet box with fixed, unchangeable installation opening of Ø 215 mm for an installation unit of nominal size R4. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for three single-compartment PVC ducts of nominal size 60 x 25 and 90 x 35 on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 90 mm.
Technical data

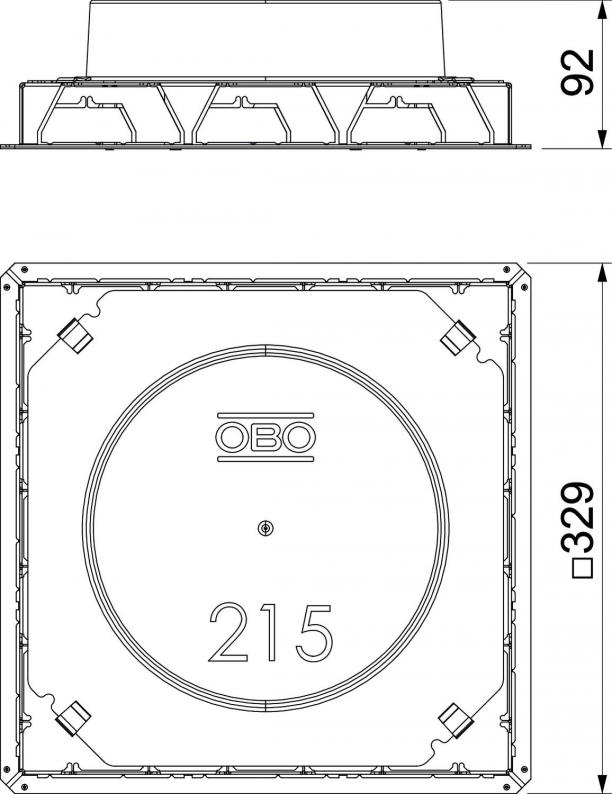

Dimensions
| Length | 329 mm |
|---|---|
| Width | 329 mm |
| Height | 92 mm |
| Dimension d Ø | 215 mm |
Technical data
| Screed height, min. | 65 mm |
|---|---|
| Screed height, max. | 90 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Trunking width, min. | 60 mm |
| Trunking width, max. | 90 mm |
| Seal installation option | yes |
| Floor plate | yes |
| Installation opening for flush-mount unit | Round |
| Nominal size for device installation units | R4 |
| Duct height, min. | 25 mm |
| Trunking height, max. | 35 mm |
| Dimension | 329x329x92 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
10,4679 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 10,4679 kg CO₂e / 1 Piece |
|---|
