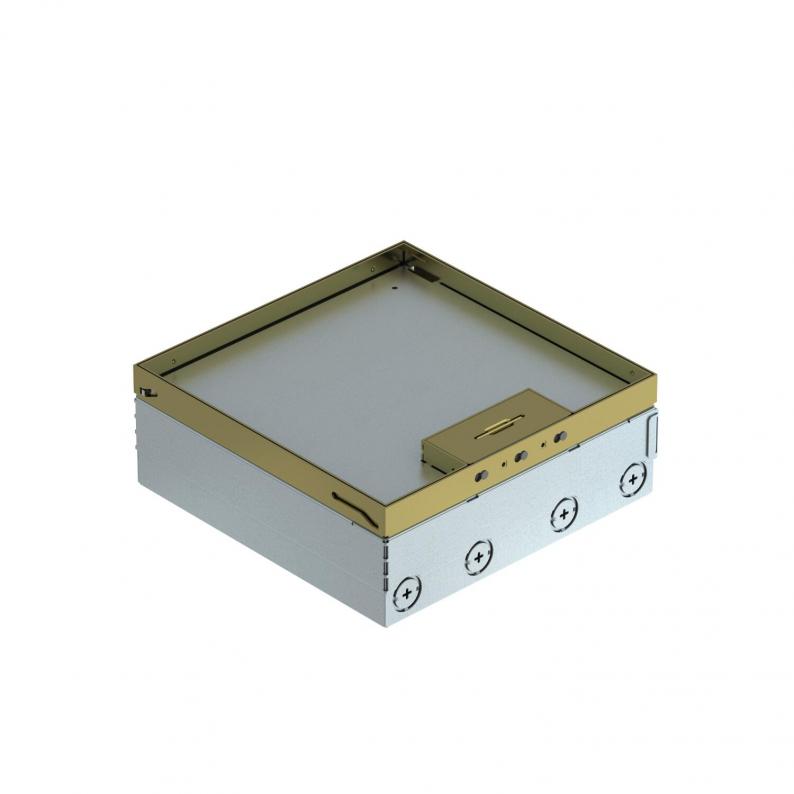

UDHOME9 floor box, freely equippable, brass
Type UDHOME9 2M | Item no. 7427328 | EAN 4012195916796
Item no. / Type
7427328 / UDHOME9 2M
Smallest selling unit: 1 piece
1piece
Description
Square floor box for use in dry-cleaned cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). Empty housing for up to three UT4 universal supports for up to 12 Modul 45 ® devices. Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.
Surfaces visible in the floor covering made of brass.
Surfaces visible in the floor covering made of brass.
Technical data

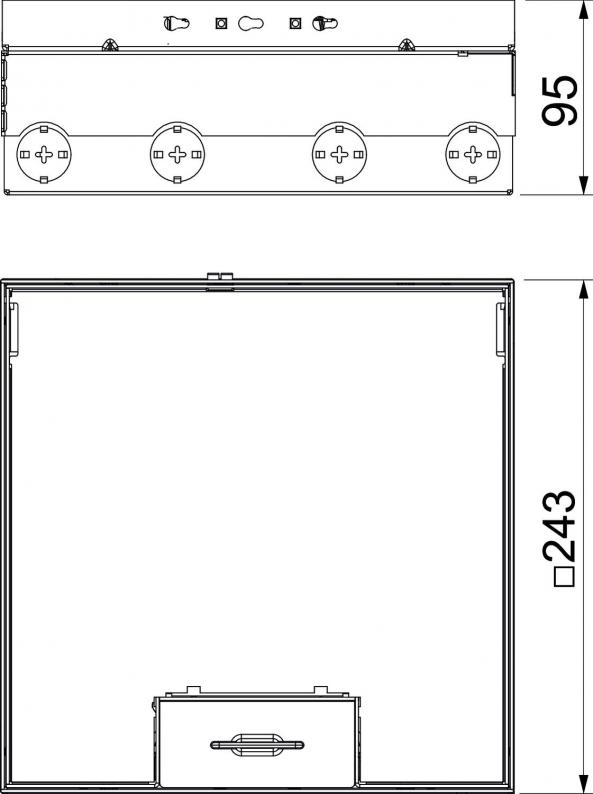

Dimensions
| Length | 246 mm |
|---|---|
| Width | 246 mm |
Technical data
| Screed height, max. | 110 mm |
|---|---|
| Screed height, min. | 95 mm |
| Floor height, max. | 125 mm |
| Floor height, min. | 95 mm |
| Cover version | Floor covering recess |
| Floor covering thickness | 15 mm |
| Height-adjustment range, max. | 125 mm |
| Height-adjustment range, min. | 95 mm |
| Length of installation dimensions | 246 mm |
| Wide installation dimensions | 246 mm |
| Length of external dimensions | 243 mm |
| Wide external dimensions | 243 mm |
| Cable outlet version | Swivellable cord outlet |
| Protection rating IK code | IK10 |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Opening mechanism | Handle |
| Equipment | Empty housing |
| Material | Brass |
| CO2 Footprint (GWP) Cradle-to-Gate | 19,0193 kg CO2e / 1 Piece |
