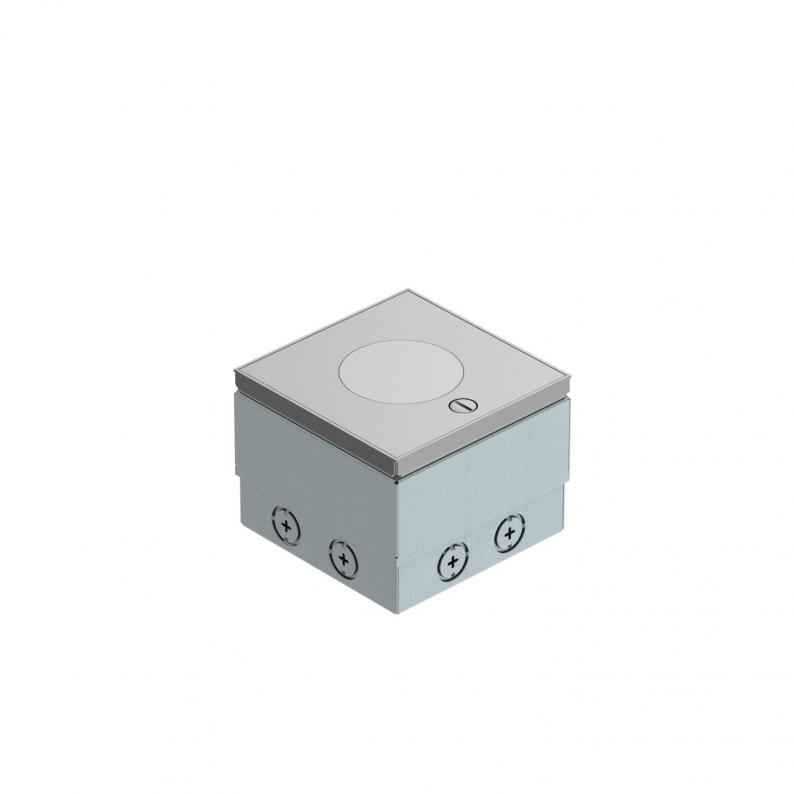

UDHOME2 floor socket, with tube body, double protective contact socket, stainless steel
Type UDHOME2 VF V
|Item no. 7368410
|EAN 4012196591824
Item no. / Type
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
Square floor socket for use in wet-care cavity and screed floors in indoor areas. Cable exit for height-adjustable tube body. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 110 mm, the height-adjustment range is +25 mm. The load-bearing capacity of 15 kN is only guaranteed when in an unused state.
The scope of delivery contains a double protective contact socket. Up to two modular data sockets (Keystones) can be installed with optional mounting supports.
Technical data

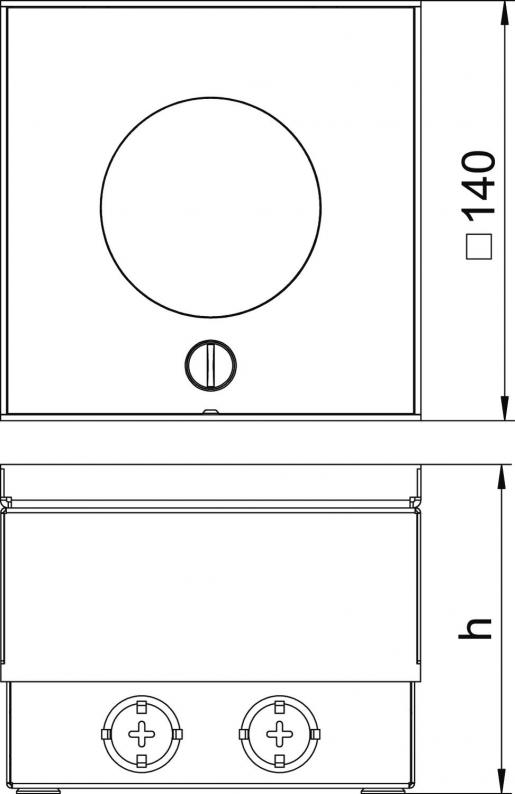

Dimensions
| Length | 140 mm |
|---|---|
| Width | 140 mm |
| Dimension h | 110 mm |
Technical data
| Floor height, min. | 110 mm |
|---|---|
| Floor height, max. | 130 mm |
| Length of installation dimensions | 140 mm |
| Wide installation dimensions | 140 mm |
| Length of external dimensions | 140 mm |
| Wide external dimensions | 140 mm |
| Suitable for underfloor ducts | no |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Number of mounting boxes | 1 |
| Suitable for wet care | yes |
| Installation depth | 110 mm |
| With floor covering recess | no |
| Floor covering protection frame | no |
| Cable outlet version | Lowerable tube body |
| Version for | Square |
| Opening mechanism | Sash lock |
| Dimension | 140x140x110 |
| Material | Stainless steel |
Environmental Data
14,7659 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 14,7659 kg CO₂e / 1 Piece |
|---|
