UDHOME2 floor socket, with stainless steel cover, equipped
Type UDHOME2 BV BS | Item no. 7368393 | EAN 4012195775959
Item no. / Type
7368393 / UDHOME2 BV BS
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

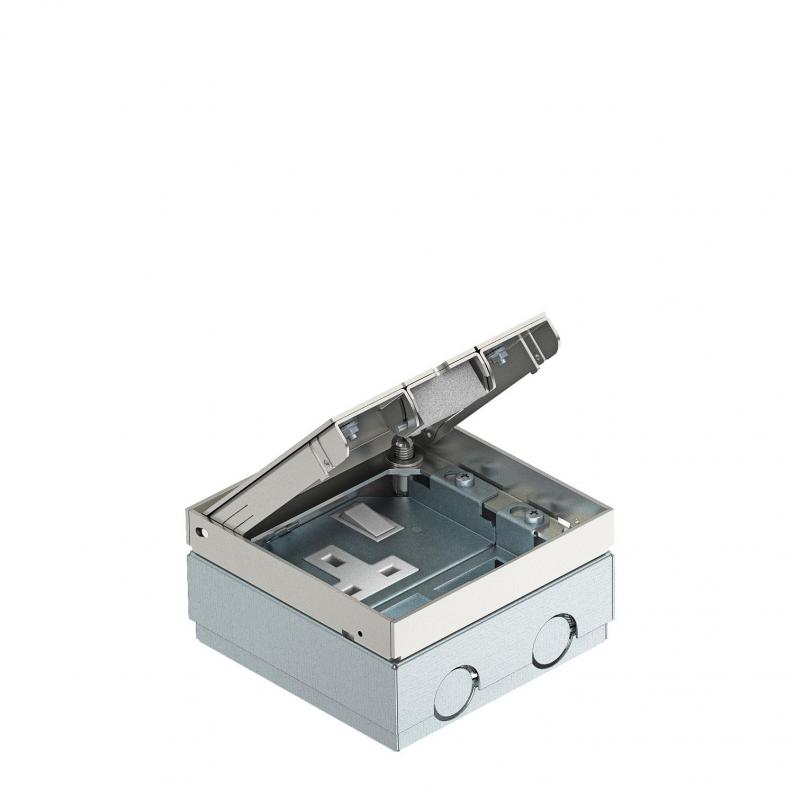

Square installation unit for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +20 mm.
The scope of delivery contains one BS socket with switch and a mounting support for up to two LJ6C data modules.
Surfaces visible in the floor covering made of brushed stainless steel.
The load-bearing capacity of 15 kN is only guaranteed when in an unused state.
The scope of delivery contains one BS socket with switch and a mounting support for up to two LJ6C data modules.
Surfaces visible in the floor covering made of brushed stainless steel.
The load-bearing capacity of 15 kN is only guaranteed when in an unused state.
Technical data
Technical data
| Floor height, max. | 95 mm |
|---|---|
| Floor height, min. | 75 mm |
| Height-adjustment range, max. | 95 mm |
| Height-adjustment range, min. | 75 mm |
| Floor care | Dry |
| Number of mounting boxes | 1 |
| Suitable for wet care | no |
| Cable outlet version | Swivellable cord outlet |
| Version for | Square |
| Opening mechanism | Tool |
| Dimension | 125x125x75 |
| Surface | Brushed and laminated |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,6089 kg CO₂e / 1 Piece |

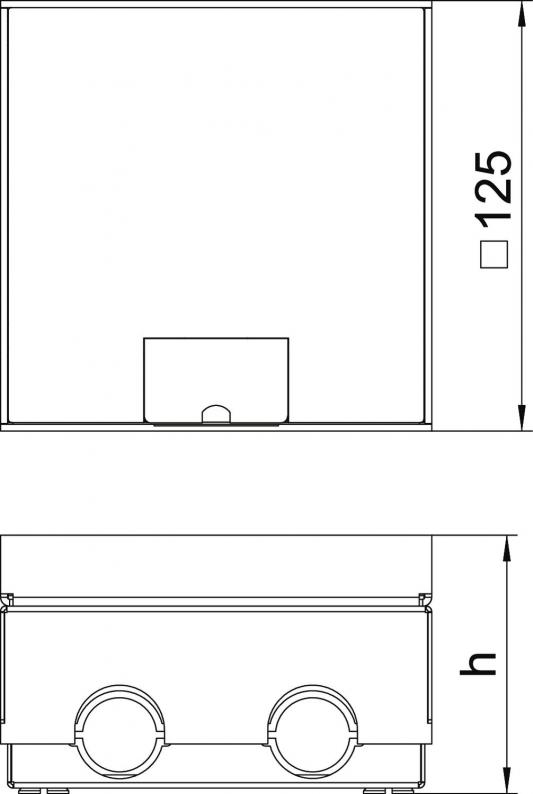

Dimensions
| Dimension h | 75 mm |
|---|
