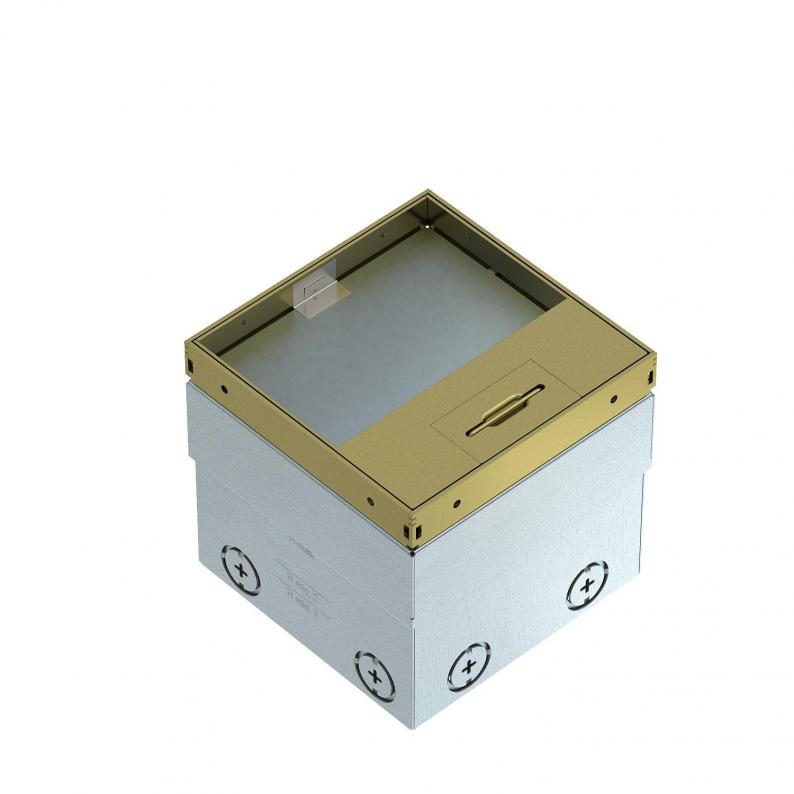

UDHOME2 floor socket, with cord outlet, with floor covering recess, unequipped, brass
Type UDHOME2 GM15 | Item no. 7368346 | EAN 4012196692507




Item no. / Type
7368346 / UDHOME2 GM15
Cover version
Floor covering recess
Smallest selling unit: 1 piece
1piece
Description
Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 110 mm, the height-adjustment range 25 mm.Frame and cover made of brass and visible in the floor covering. Empty housing for up to 2 Modul 45® devices in the mounting support and 2 data sockets in the optional data technology support.
Technical data
Dimensions
Length | 140 mm |
---|---|
Width | 140 mm |
Height | 110 mm |
Technical data
Floor height, max. | 135 mm |
---|---|
Floor height, min. | 110 mm |
Cover version | Floor covering recess |
Floor covering thickness | 15 mm |
Suitable for screed-covered underfloor ducts | no |
Suitable for screed-flush closed underfloor ducts | no |
Number of installable devices | 2 |
Seal installation option | no |
Suitable for underfloor ducts | no |
Suitable for cavity floor installation | yes |
Suitable for raised floor installation | yes |
Floor care | Dry |
Frame version | Floor covering contact edge |
Suitable for wet care | no |
With floor covering recess | yes |
Floor covering protection frame | no |
Cable outlet version | Swivellable cord outlet |
Device support to accept mounting boxes | no |
Protection rating IK code | IK10 |
Heavy-duty version | no |
Nominal size for device installation units | 2 |
Approvals | VDE |
Standard | EN 50085-2-2 |
Protection rating (IP) when used | IP20 |
Protection rating (IP) when unused | IP40 |
Application when used | 6.101.1 Dry floor care |
Application when unused | 6.101.1 Dry floor care |
Vertical load, small area | to 3,000 N |
Vertical load, large area | to 15,000 N |
Version for | Square |
Opening mechanism | Handle |
Equipment | Empty housing |
Dimension | 140x140x110 |
Material | Brass |
CO2 Footprint (GWP) Cradle-to-Gate | 11,3082 kg CO2e / 1 Piece |
