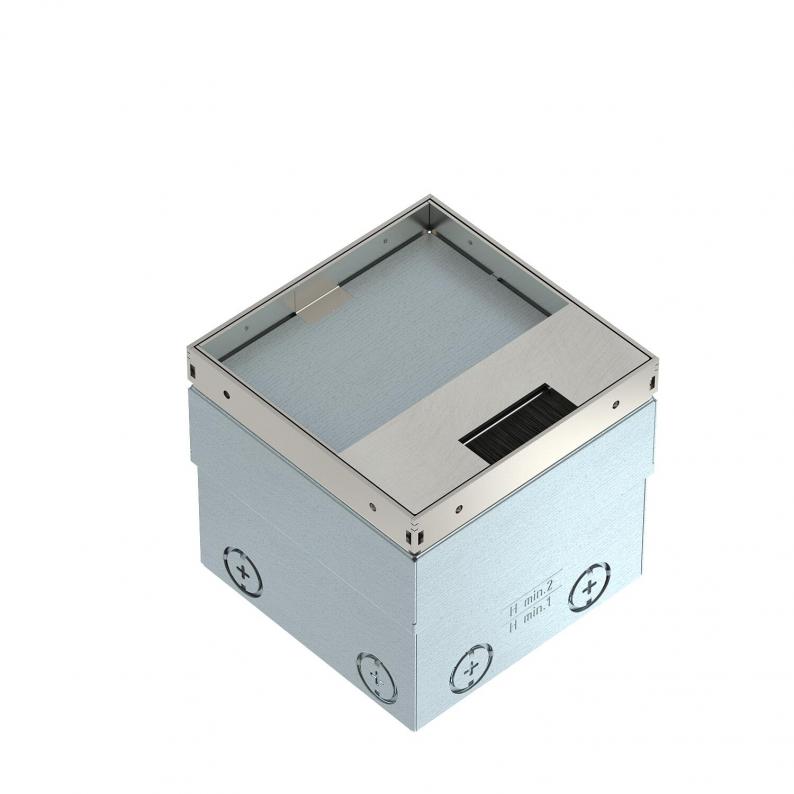

UDHOME2 floor socket, with brush outlet, with floor covering recess, unequipped, stainless steel
Type UDHOME2 BN15 | Item no. 7368353 | EAN 4012197366810




Item no. / Type
7368353 / UDHOME2 BN15
Cover version
Floor covering recess
Smallest selling unit: 1 piece
1piece
Description
Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 110 mm, the height-adjustment range 25 mm. Frame and cover made of stainless steel and visible in the floor covering. Cover with floor covering recess and brush bar for cable routing. Empty housing for up to 2 Modul 45® devices in the mounting support and 2 data sockets in the optional data technology support.
Technical data
Dimensions
Length | 140 mm |
---|---|
Width | 140 mm |
Height | 110 mm |
Dimension h | 110 mm |
Technical data
Screed height, max. | 135 mm |
---|---|
Screed height, min. | 110 mm |
Floor height, max. | 135 mm |
Floor height, min. | 110 mm |
No. of entries | 8 |
Cover version | Floor covering recess |
Floor covering thickness | 15 mm |
Height-adjustment range, max. | 135 mm |
Height-adjustment range, min. | 110 mm |
Suitable for screed-covered underfloor ducts | no |
Suitable for screed-flush closed underfloor ducts | no |
Number of installable devices | 2 |
Seal installation option | no |
Length of installation dimensions | 144 mm |
Wide installation dimensions | 144 mm |
Length of external dimensions | 140 mm |
Wide external dimensions | 140 mm |
Suitable for underfloor ducts | no |
Suitable for cavity floor installation | yes |
Suitable for raised floor installation | yes |
Floor care | Dry |
Number of mounting boxes | 0 |
Suitable for wet care | no |
Installation depth | 110 mm |
With floor covering recess | yes |
Floor covering protection frame | no |
Cable outlet version | Brush bar |
Device support to accept mounting boxes | no |
Protection rating IK code | IK10 |
Suitable for outdoor use | no |
Number of SCHUKO sockets | 0 |
Heavy-duty version | no |
Nominal size for device installation units | 2 |
Approvals | VDE |
Protection rating (IP) when used | IP20 |
Protection rating (IP) when unused | IP40 |
Application when used | 6.101.1 Dry floor care |
Application when unused | 6.101.1 Dry floor care |
Vertical load, small area | to 3,000 N |
Vertical load, large area | to 15,000 N |
Version for | Square |
Equipment | Empty housing |
Dimension | 140x140x110 |
Surface | Bright, treated |
Material | Stainless steel 1.4301 |
CO2 Footprint (GWP) Cradle-to-Gate | 12,057 kg CO2e / 1 Piece |
