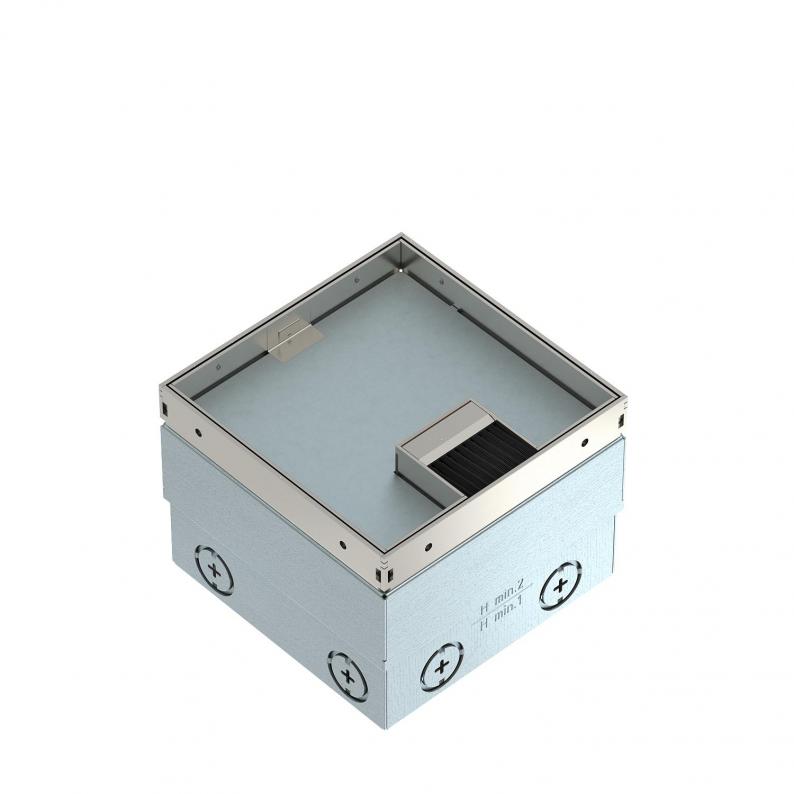

UDHOME2 floor socket, with brush bar, with floor covering recess, with FLF support, cover, stainless steel
Type UDHOME2 BV15 FLF | Item no. 7427042 | EAN 4012196793969
Item no. / Type
7427042 / UDHOME2 BV15 FLF
Cover version
Floor covering recess
Smallest selling unit: 1 piece
1piece
Description
Square installation unit for use in dry-care cavity and screed floors in indoor areas.
Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height adjustment range is +35 mm. Flushfloor cable outlet through brush bar. Device support made of galvanised sheet steel for one FLF 6/5 (or 2x FLF 3/5) and one FLF 3/5.
Cover, can be covered with floor covering, 15 mm
Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height adjustment range is +35 mm. Flushfloor cable outlet through brush bar. Device support made of galvanised sheet steel for one FLF 6/5 (or 2x FLF 3/5) and one FLF 3/5.
Cover, can be covered with floor covering, 15 mm
Technical data
Dimensions
| Length | 140 mm |
|---|---|
| Width | 140 mm |
| Height | 100 mm |
Technical data
| Floor height, max. | 135 mm |
|---|---|
| Floor height, min. | 100 mm |
| Cover version | Floor covering recess |
| Floor covering thickness | 15 mm |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Number of installable devices | 3 |
| Seal installation option | no |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Floor covering contact edge |
| Suitable for wet care | no |
| With floor covering recess | yes |
| Floor covering protection frame | no |
| Cable outlet version | Brush bar |
| Device support to accept mounting boxes | no |
| Protection rating IK code | IK10 |
| Heavy-duty version | no |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Application when used | 6.101.1 Dry floor care |
| Application when unused | 6.101.1 Dry floor care |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 15,000 N |
| Version for | Square |
| Equipment | Empty housing for FLF socket |
| Dimension | 140x140x100 |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 12,5898 kg CO2e / 1 Piece |
