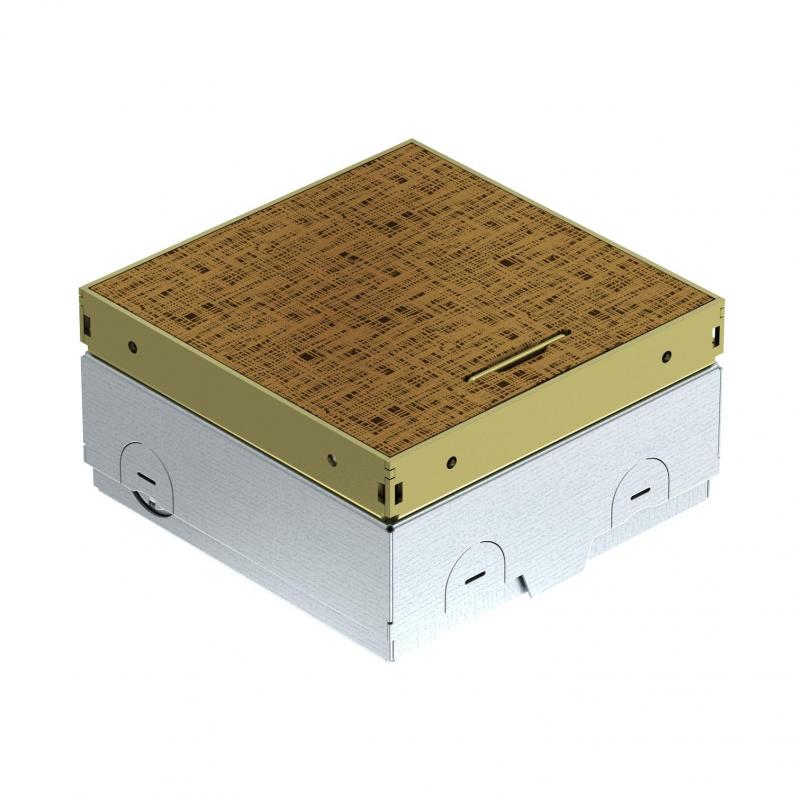

UDHOME-ONE floor socket, without floor covering recess, freely equippable, brass, decorative plate: hammer blow
Type UDHOME-ONE GM D3 | Item no. 7368226 | EAN 4012197382391



Item no. / Type
7368226 / UDHOME-ONE GM D3
Smallest selling unit: 1 piece
1piece
Description

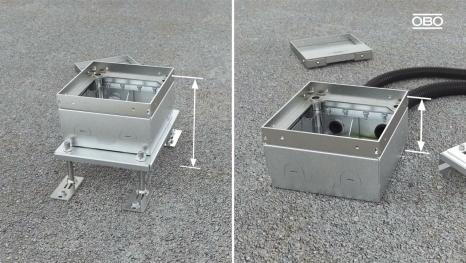

Square floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +30 mm. Frame and cover made of brass and visible in the floor covering. Cover with decorative plate hammer blow. Empty housing for a 45® installation device and a data socket. When delivered, the item is closed with a blanking plate.
Technical data
Dimensions
Length | 140 mm |
---|---|
Width | 140 mm |
Height | 75 mm |
Technical data
Floor height, max. | 105 mm |
---|---|
Floor height, min. | 75 mm |
Suitable for screed-covered underfloor ducts | no |
Suitable for screed-flush closed underfloor ducts | no |
Number of installable devices | 2 |
Seal installation option | no |
Suitable for underfloor ducts | no |
Suitable for cavity floor installation | yes |
Suitable for raised floor installation | yes |
Floor care | Dry |
Suitable for wet care | no |
With floor covering recess | no |
Floor covering protection frame | no |
Cable outlet version | Swivellable cord outlet |
Device support to accept mounting boxes | no |
Protection rating IK code | IK10 |
Heavy-duty version | no |
Approvals | VDE |
Protection rating (IP) when used | IP20 |
Protection rating (IP) when unused | IP40 |
Application when used | 6.101.1 Dry floor care |
Application when unused | 6.101.1 Dry floor care |
Vertical load, small area | to 3,000 N |
Vertical load, large area | to 15,000 N |
Version for | Square |
Opening mechanism | Handle |
Equipment | Empty housing |
Dimension | 140x140x75 |
CO2 Footprint (GWP) Cradle-to-Gate | 9,3379 kg CO2e / 1 Piece |
