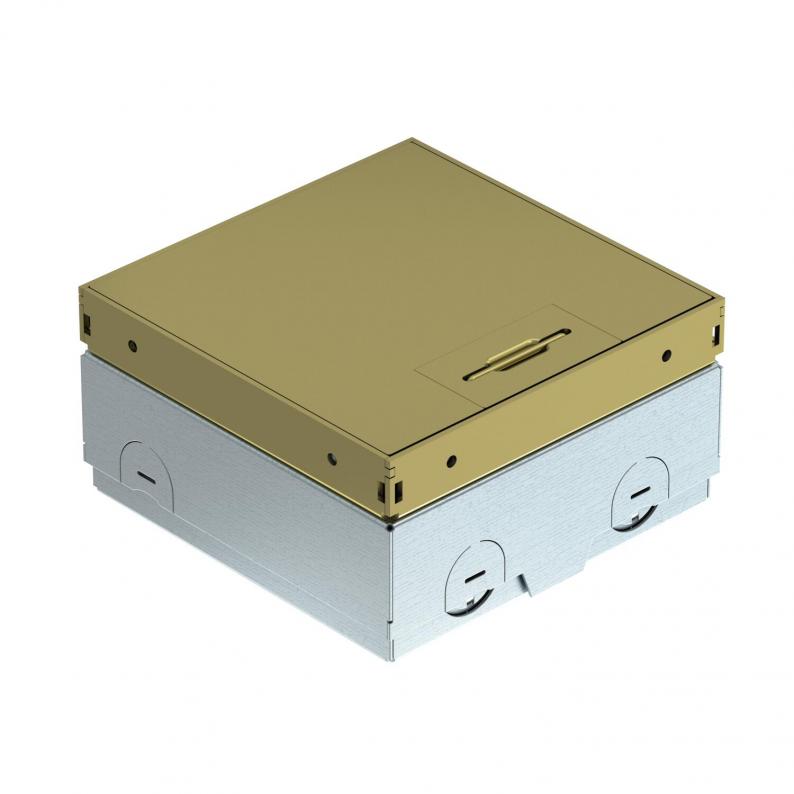

UDHOME-ONE floor socket, without floor covering recess, BS socket, brass

Type UDHOME-ONE M BS | Item no. 7368309 | EAN 4012196952359

Item no. / Type
7368309 / UDHOME-ONE M BS
Cover version
Decorative plate

Smallest selling unit: 1 piece

Description

Square floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +30 mm. Frame and cover made of brass and visible in the floor covering. Cover with decorative plate. The delivery includes a switched BS socket.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length140 mm
Width140 mm
Height75 mm

Technical data

Floor height, max.105 mm
Floor height, min.75 mm
Cover versionDecorative plate
Suitable for screed-covered underfloor ductsno
Suitable for screed-flush closed underfloor ductsno
Seal installation optionno
Suitable for underfloor ductsno
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Floor careDry
Suitable for wet careno
With floor covering recessno
Floor covering protection frameno
Cable outlet versionSwivellable cord outlet
Device support to accept mounting boxesno
Protection rating IK codeIK10
Protection rating (IP) when usedIP20
Protection rating (IP) when unusedIP40
Application when used6.101.1 Dry floor care
Application when unused6.101.1 Dry floor care
Vertical load, small areato 3,000 N
Vertical load, large areato 15,000 N
Opening mechanismHandle
EquipmentSingle BS socket
Dimension140x140x75
MaterialBrass
CO2 Footprint (GWP) Cradle-to-Gate9,2646 kg CO2e / 1 Piece
