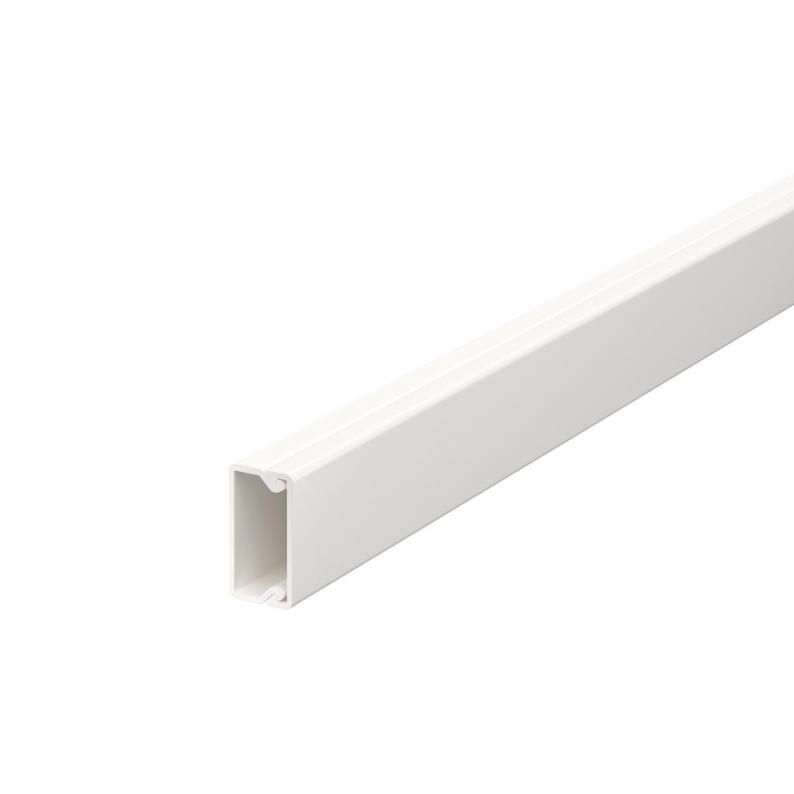

Trunking, type WDKH 10020

Trunking, type WDKH 10020

Type WDKH-10020RW
|
Item no. 6175375
|
EAN 4012195933779
Show all variants
Item no. / Type
6175375 / WDKH-10020RW
Colour
Pure white; RAL 9010

Smallest selling unit: 96 m

m

Description

Trunking cover and base with base perforation made of halogen-free plastic.

During installation, ensure that only halogen-free accessories and fastening materials are used.

  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length2000 mm
Width20 mm
Height10 mm

Technical data

Usable cross-section135 mm²
Halogen-freeyes
Number of fixed partitions0
Number of insertable partitions0
Cable retaining clipno
Protective filmno
Duct connectorno
Protection ratingIP30
Protection rating IK codeIK07.
Fastening typeBase perforation
Version, cable trunking coverLoose
Base perforationwith base perforation
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension10x20x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,4304 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,4304 kg CO2e / 1 Meter

Accessories

System accessories
Type
WDKH-E10020RW

Smallest selling unit: 10 piece

piece

Type
WDKH-I10020RW

Smallest selling unit: 4 piece

piece

Type
WDKH-A10020RW

Smallest selling unit: 4 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

WDKH-10020RW
Item no.
6175375
Length
2000
Width
20
Height
10
Colour
Pure white; RAL 9010
