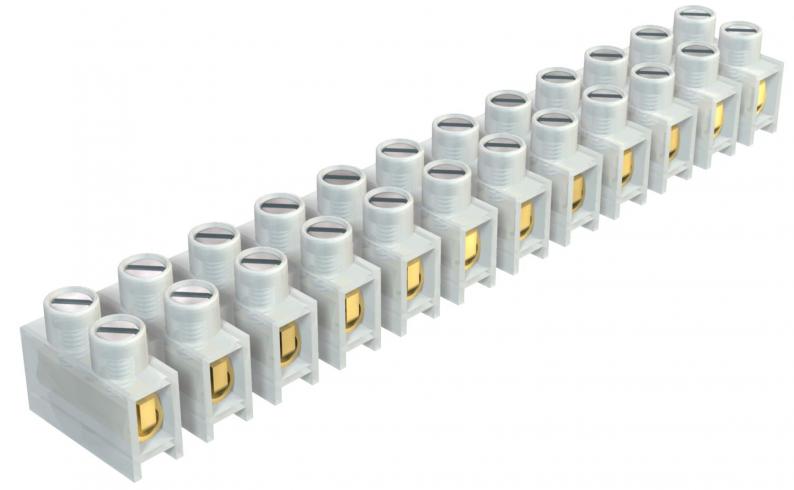

Terminal strips, 4 mm², wire protection clamp, polyamide
Type 74 D/EKL 1BEF2 D | Item no. 2056178 | EAN 4012195184393
Item no. / Type
2056178 / 74 D/EKL 1BEF2 D
No. of terminals
12
Colour
Transparent
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
Description
With wire protection clamp.
Tested according to EN 60998.
Brass terminals, steel screws, galvanised and blue passivated, 12-pin, individual terminals detachable.
Captive upwards screw.
Nominal cross-section 4 mm².
Nominal voltage 450 V.
Nominal current 32 A.
Max. attachment each side: 4 mm² single-wire or 4 mm² fine-wire.
Maximum approved ambient temperature to EN 60998: -5 to +85 °C.
Tested according to EN 60998.
Brass terminals, steel screws, galvanised and blue passivated, 12-pin, individual terminals detachable.
Captive upwards screw.
Nominal cross-section 4 mm².
Nominal voltage 450 V.
Nominal current 32 A.
Max. attachment each side: 4 mm² single-wire or 4 mm² fine-wire.
Maximum approved ambient temperature to EN 60998: -5 to +85 °C.
Technical data

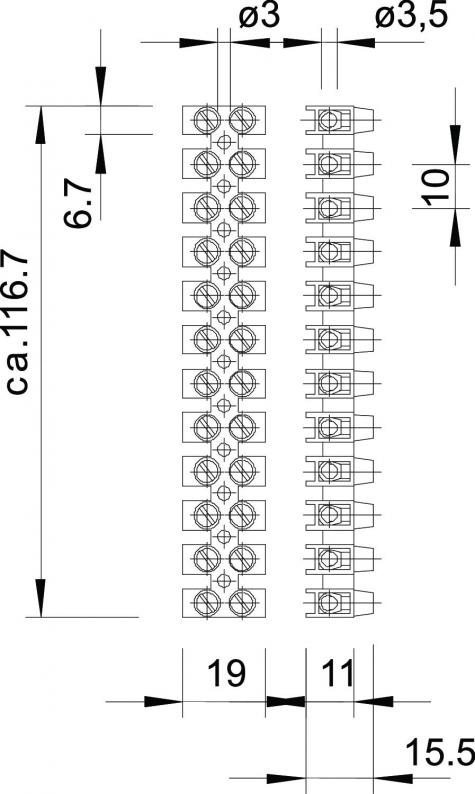

Dimensions
| Length | 116,7 mm |
|---|---|
| Width | 19 mm |
| Height | 15,5 mm |
Technical data
| Ambient temperature | 85 °C |
|---|---|
| Pole number | 12 |
| Nominal current | 32 A |
| Nominal voltage | 450 V |
| Explosion-tested version | no |
| Closing plate required | no |
| Drill hole spacing, centre | 10 mm |
| Insulation material | Thermoplast |
| Suitable for solid conductors | yes |
| Suitable for flexible conductors | yes |
| Suitable for multi-wire conductors | yes |
| Transparent | yes |
| Number of screwless terminals per pole | 2 |
| Version of electrical connection 1 | Screw connection |
| Connection position | Side |
| Version of electrical connection 2 | Screw connection |
| Connectable conductor cross-section, fine-wire without wire-end ferrule, max. | 4 mm² |
| Connectable conductor cross-section, fine-wire without wire-end ferrule, min. | 0,5 mm² |
| Connectable conductor cross-section, single-wire, max. | 4 mm² |
| Connectable conductor cross-section, single-wire, min. | 0,5 mm² |
| Nominal cross-section, min. | 4 mm² |
| Cross-section | Max. attachment each side: 4 mm² single-wire or 4 mm² fine-wire mm² |
| No. of terminals | 12 |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 4,0mm² |
| Material | Polyamide |
| Colour | Transparent |
