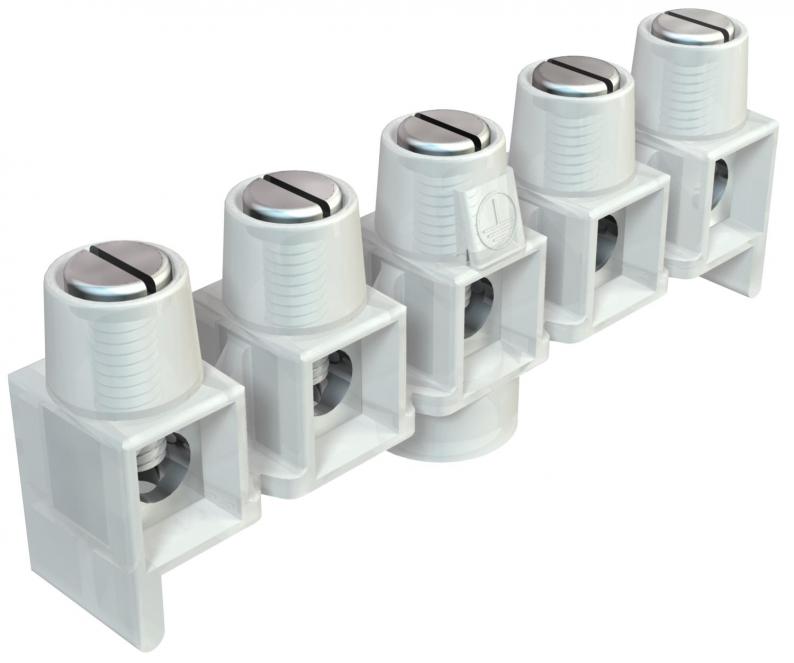

Terminal strip 2.5 mm²

Terminal strip 2.5 mm²

Type 689 | Item no. 2017342 | EAN 4012195159377

Show all variants
Item no. / Type
2017342 / 689

Smallest selling unit: 50 piece

DescriptionTechnical dataDownloadsVariants

Description

Brass terminal block, nickel plated, steel screws, electrogalvanised and transparently passivated, nominal cross section 0.8 ÷ 2.5 mm², nominal voltage 660 V, 5-pin, with socket terminals, max. connectable cross sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm², unused pins can be disconnected and used as individual terminals.

System accessories for junction boxes A 8; A 11; ECO 12; ECO 14; ECO 18

  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length61,75 mm
Width11 mm
Height21,8 mm

Technical data

Pole number5
Nominal voltage660 V
Explosion-tested versionno
Closing plate requiredno
Insulation materialMiscellaneous
Transparentno
Number of screwless terminals per pole1
Version of electrical connection 1Screw connection
Connection positionSide
Nominal cross-section, max.2,5 mm²
Nominal cross-section, min.0,8 mm²
Cross-sectionmax. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm²
No. of terminals5
Dimension4mm2
MaterialPolyamide
ColourNatural
CO2 Footprint (GWP) Cradle-to-Gate0,0926 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (1)
Certificates (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

689
Item no.
2017342
Length
61,75
Nominal voltage
660
Nominal cross-section, max.
2,5
Nominal cross-section, min.
0,8
