starQuick nut M6
Type SQ M6 | Item no. 2146509 | EAN 4012195016069
Item no. / Type
2146509 / SQ M6
Nominal size
M6
This item is a discontinued product!
Smallest selling unit: 100 piece
100piece
Description

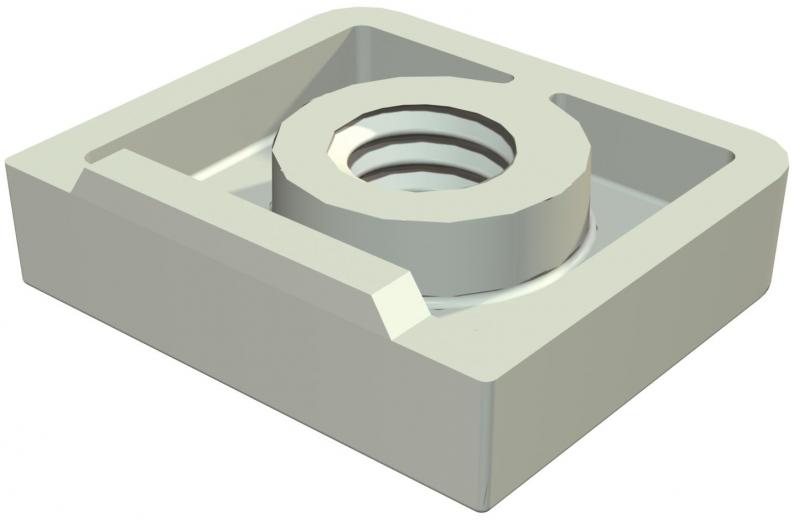

Nut for insertion in starQuick clip, to mount the clip on an M6 thread.
Technical data
Dimensions
| Dimension L | 15 mm |
|---|---|
| Dimension A | 17 mm |
| Dimension t | 4 mm |
| Dimension h | 5 mm |
Technical data
| Nominal size | M6 |
|---|---|
| Halogen-free | yes |
| Expandable | yes |
| Closed | no |
| Number of cables/pipes | 1 |
| Fastening type | Screw hole |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | M6 |
| Material | Polycarbonate |
| Colour | Light grey; RAL 7035 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Nominal size
Item no.
SQ M6
M6
2146509
SQ M6
Item no.
2146509
Nominal size
M6
