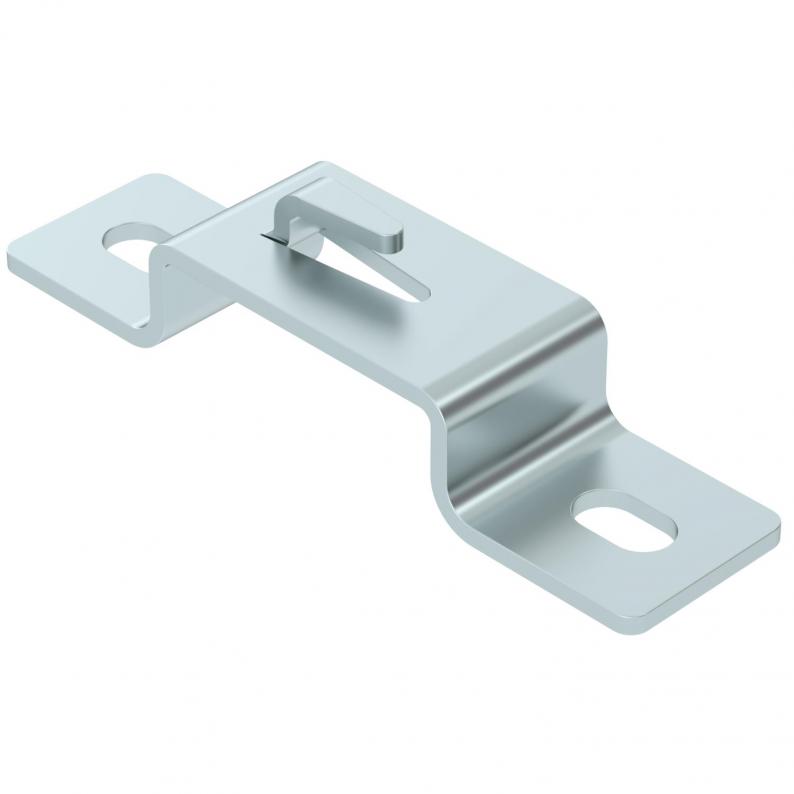

Stand-off bracket FS
Type DBLG 20 050 FS | Item no. 6015646 | EAN 4012196961528
Item no. / Type
6015646 / DBLG 20 050 FS
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 20 piece
20piece
Description
To erect mesh cable trays on the floor. Also usable as wall fixing.
Screwless fastening of the mesh cable tray on the stand-off bracket.
Technical data

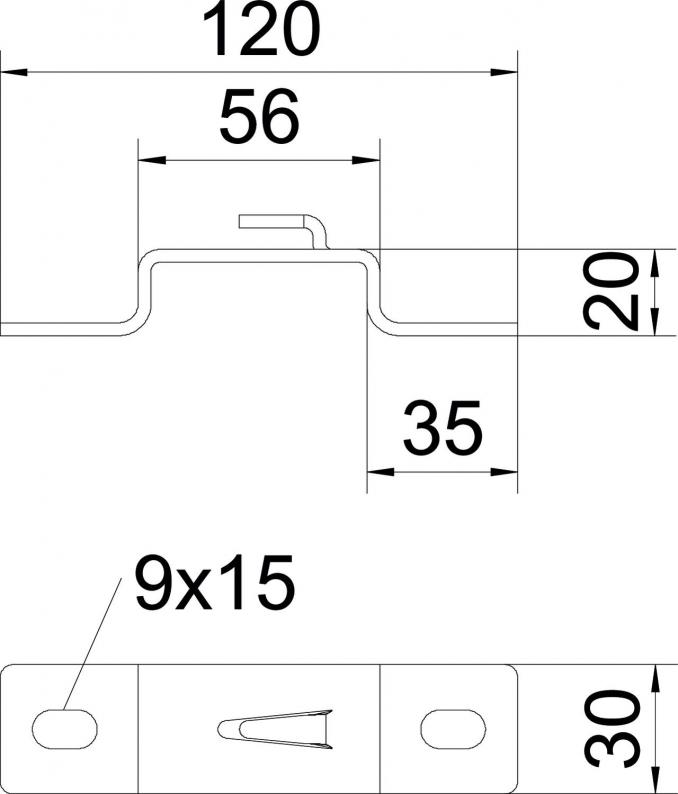

Dimensions
| Height | 20 mm |
|---|---|
| Dimension L | 120 mm |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
Technical data
| Suitable for mesh cable tray | yes |
|---|---|
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Version for | Wall/ceiling clamp, trapezoidal profile |
| Tray fastening | Retaining lug |
| Dimension | B50mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2412 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Dimension B
Tray fastening
Surface
Material
Item no.
DBLG 20 050 FS
56
Retaining lug
Strip galvanized
Steel
6015646
DBLG 20 050 FS
Item no.
6015646
Dimension B
56
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
