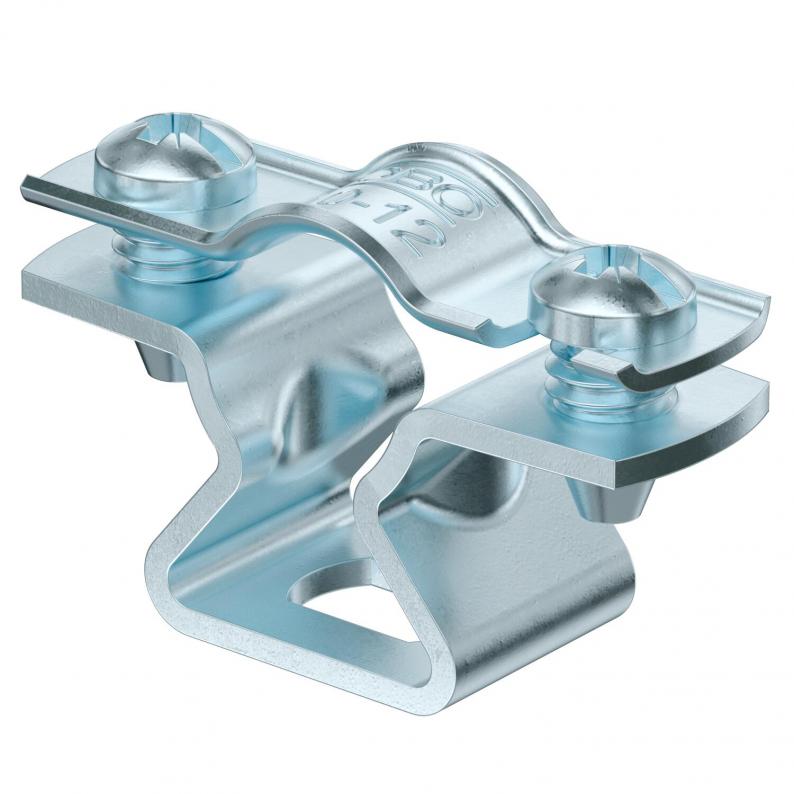

Spacer clip 733 G
Type ASL 733 12 G
|Item no. 1362756
|EAN 4012196600038
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Surface
Electrogalvanized
Material
Steel
Smallest selling unit: 25 piece
25piece
piece
Description
Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
Technical data
Technical data
| Maintain electrical functions | yes |
|---|---|
| Material thickness | 1,5 mm |
| For diameter | 10 - 12 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Number of cables/pipes | 1 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Screw hole |
| Clamping range D, min. | 10 mm |
| Clamping range D, max. | 12 mm |
| Dimension | 10-12mm |
| Surface | Electrogalvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0517 kg CO2e / 1 Piece |

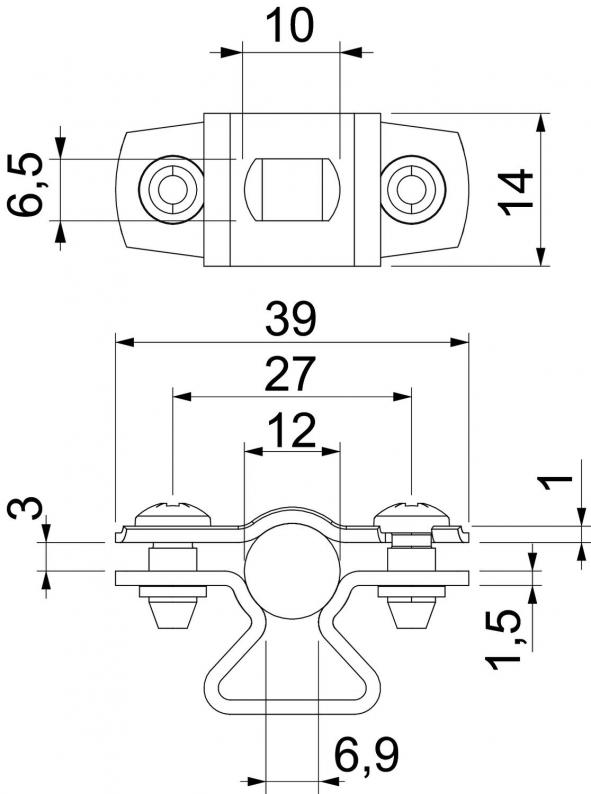

Dimensions
| Dimension L | 10 mm |
|---|---|
| Dimension A | 39 mm |
| Dimension B | 27 mm |
| Dimension d max. | 12 mm |
| Dimension d min. | 10 mm |
| Dimension b | 14 mm |
| Dimension x | 3 mm |
| Dimension s | 6,9 mm |
| Dimension t1 (mm) | 1 |
| Dimension t2 (mm) | 1,5 |
| Dimension D | 12 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (5)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
ASL 733 10 G
1,5
8
10
Electrogalvanized
Steel
1362754
ASL 733 12 G
1,5
10
12
Electrogalvanized
Steel
1362756
ASL 733 17 G
1,5
14
17
Electrogalvanized
Steel
1362762
ASL 733 20 G
1,5
17
20
Electrogalvanized
Steel
1362764
ASL 733 25 G
1,5
20
25
Electrogalvanized
Steel
1362768
ASL 733 30 G
1,5
25
30
Electrogalvanized
Steel
1362772
ASL 733 36 G
1,5
30
36
Electrogalvanized
Steel
1362776
ASL 733 44 G
1,5
36
44
Electrogalvanized
Steel
1362780
ASL 733 53 G
1,5
44
53
Electrogalvanized
Steel
1362784
ASL 733 63 G
1,5
53
63
Electrogalvanized
Steel
1362788
