Spacer clip 733 FT
Type ASL 733 10 FT | Item no. 1362704 | EAN 4012196599875
Item no. / Type
Material thickness
Clamping range D, max.
Clamping range D, min.
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 25 piece
25piece
Description

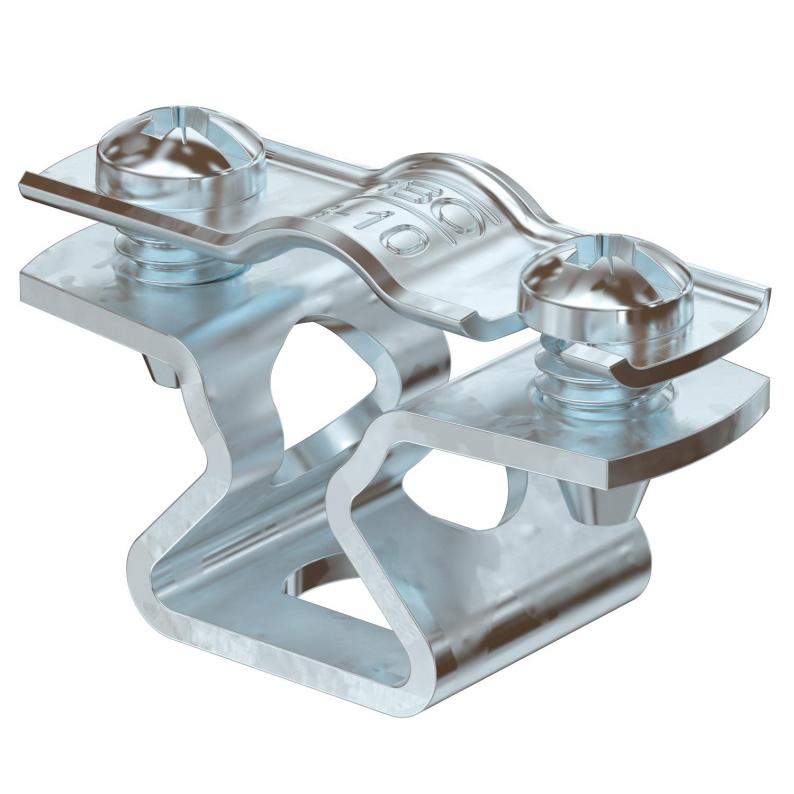

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Technical data
Technical data
| Maintain electrical functions | yes |
|---|---|
| Material thickness | 1,5 mm |
| For diameter | 8 - 10 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Number of cables/pipes | 1 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Screw hole |
| Clamping range D, max. | 10 mm |
| Clamping range D, min. | 8 mm |
| Dimension | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0623 kg CO₂e / 1 Piece |

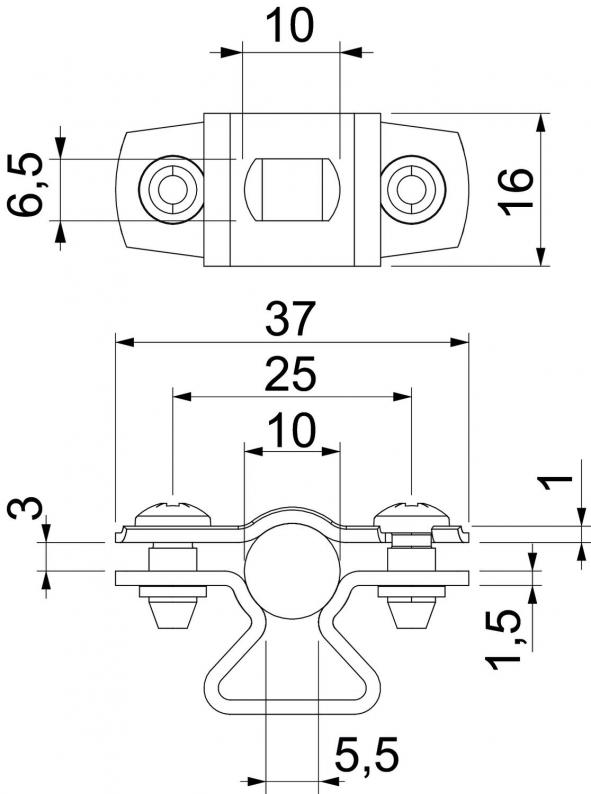

Dimensions
| Dimension L | 10 mm |
|---|---|
| Dimension A | 37 mm |
| Dimension B | 25 mm |
| Dimension d max. | 10 mm |
| Dimension d min. | 8 mm |
| Dimension b | 16 mm |
| Dimension x | 3 mm |
| Dimension s | 5,5 mm |
| Dimension t1 (mm) | 1 |
| Dimension t2 (mm) | 1,5 |
| Dimension D | 10 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (5)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Material thickness
Clamping range D, max.
Clamping range D, min.
Surface
Material
Item no.
ASL 733 10 FT
1,5
10
8
Hot-dip galvanised
Steel
1362704
ASL 733 12 FT
1,5
12
10
Hot-dip galvanised
Steel
1362706
ASL 733 14 FT
1,5
14
12
Hot-dip galvanised
Steel
1362708
ASL 733 17 FT
1,5
17
14
Hot-dip galvanised
Steel
1362712
ASL 733 20 FT
1,5
20
17
Hot-dip galvanised
Steel
1362714
ASL 733 25 FT
1,5
25
20
Hot-dip galvanised
Steel
1362718
ASL 733 30 FT
1,5
30
25
Hot-dip galvanised
Steel
1362722
ASL 733 36 FT
1,5
36
30
Hot-dip galvanised
Steel
1362726
ASL 733 44 FT
1,5
44
36
Hot-dip galvanised
Steel
1362730
ASL 733 53 FT
1,5
53
44
Hot-dip galvanised
Steel
1362734
ASL 733 63 FT
1,5
63
53
Hot-dip galvanised
Steel
1362738
