Spacer clip 733 ALU
Type ASL 733 10 ALU | Item no. 1362804 | EAN 4012196600144
Item no. / Type
Material thickness
Clamping range D, max.
Clamping range D, min.
Material
Aluminium
Smallest selling unit: 25 piece
25piece
Description

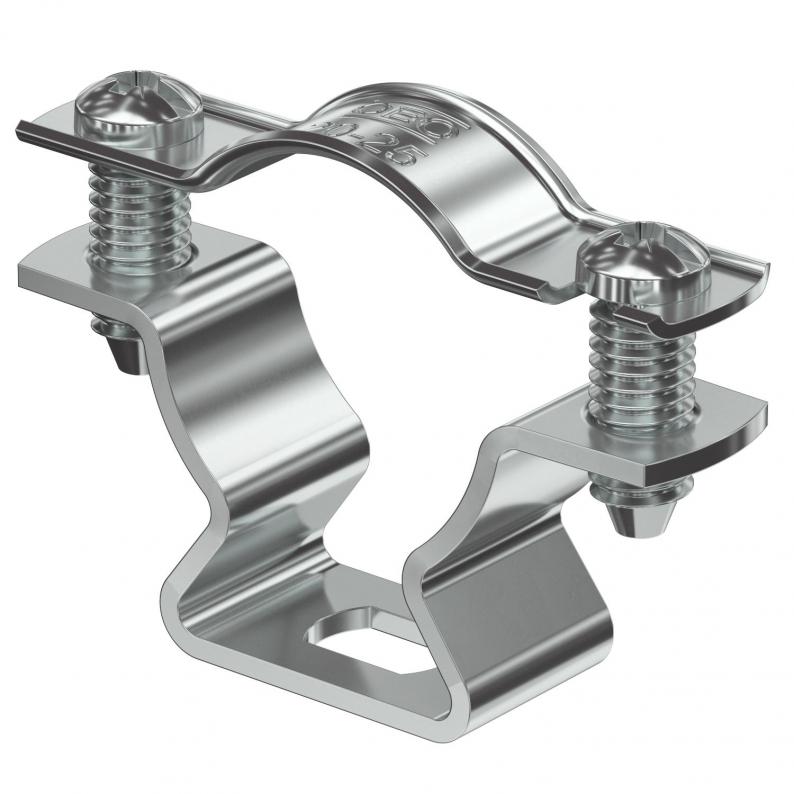

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking upper part. Fastening via slot. From the clip size of 20 suitable for installation with a nail device or bolt-firing device.
Approved for the maintenance of electrical function to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90 (except ALU).
Approved for the maintenance of electrical function to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90 (except ALU).
Technical data
Technical data
| Material thickness | 1,5 mm |
|---|---|
| For diameter | 8 - 10 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Number of cables/pipes | 1 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Screw hole |
| Clamping range D, max. | 10 mm |
| Clamping range D, min. | 8 mm |
| Dimension | 8-10mm |
| Material | Aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1355 kg CO₂e / 1 Piece |

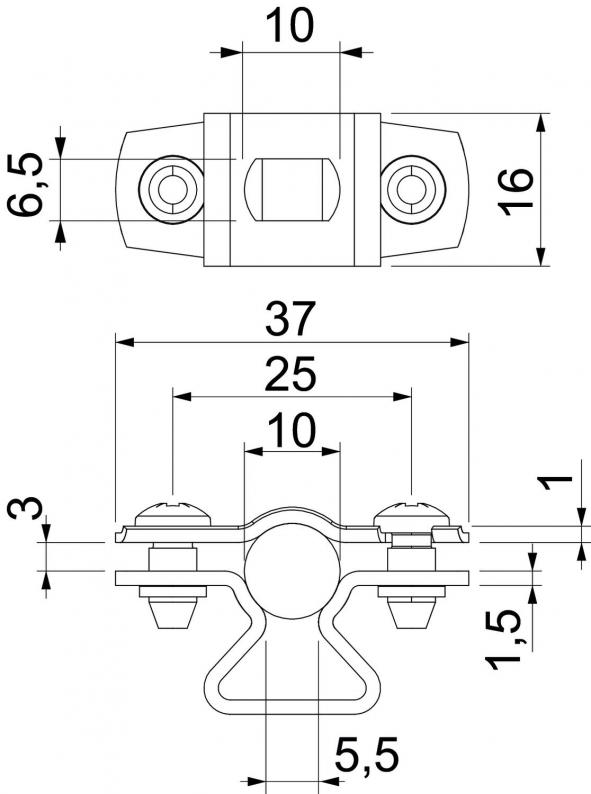

Dimensions
| Dimension L | 10 mm |
|---|---|
| Dimension A | 37 mm |
| Dimension B | 25 mm |
| Dimension d max. | 10 mm |
| Dimension d min. | 8 mm |
| Dimension b | 16 mm |
| Dimension x | 3 mm |
| Dimension s | 5,5 mm |
| Dimension t1 (mm) | 1 |
| Dimension t2 (mm) | 1,5 |
| Dimension D | 10 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Material thickness
Clamping range D, max.
Clamping range D, min.
Material
Item no.
ASL 733 10 ALU
1,5
10
8
Aluminium
1362804
ASL 733 12 ALU
1,5
12
10
Aluminium
1362806
ASL 733 14 ALU
1,5
14
12
Aluminium
1362808
ASL 733 17 ALU
1,5
17
14
Aluminium
1362812
ASL 733 20 ALU
1,5
20
17
Aluminium
1362814
ASL 733 25 ALU
1,5
25
20
Aluminium
1362818
ASL 733 30 ALU
1,5
30
25
Aluminium
1362822
ASL 733 36 ALU
1,5
36
30
Aluminium
1362826
ASL 733 44 ALU
1,5
44
36
Aluminium
1362830
ASL 733 53 ALU
1,5
53
44
Aluminium
1362834
ASL 733 63 ALU
1,5
63
53
Aluminium
1362838
