Side holder for cable gland

Side holder for cable gland

Type SH KAB 20 FS | Item no. 6015425 | EAN 4012196649990

Show all variants
Item no. / Type
Hole diameter
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 10 piece

DescriptionTechnical dataDownloadsVariants

Description

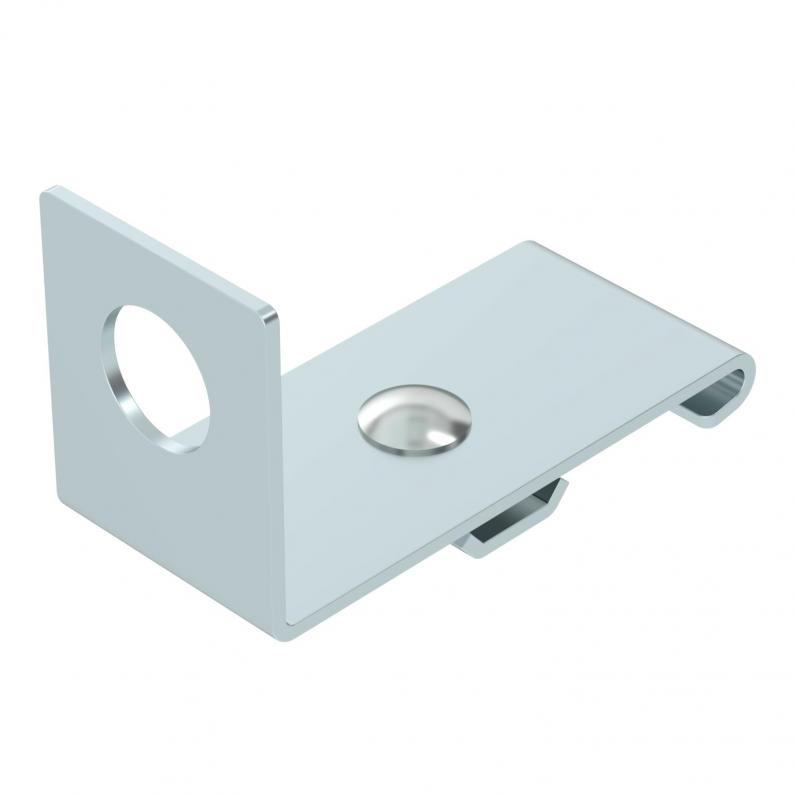

Conduit take-off bracket with punched hole for accepting cable glands.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Hole diameter20 mm
Dimension53 x 97
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,3849 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Hole diameter
SH KAB 20 FS
Item no.
6015425
Hole diameter
20
Surface
Strip galvanized
Material
Steel
SH KAB 25 FS
Item no.
6015433
Hole diameter
25
Surface
Strip galvanized
Material
Steel
