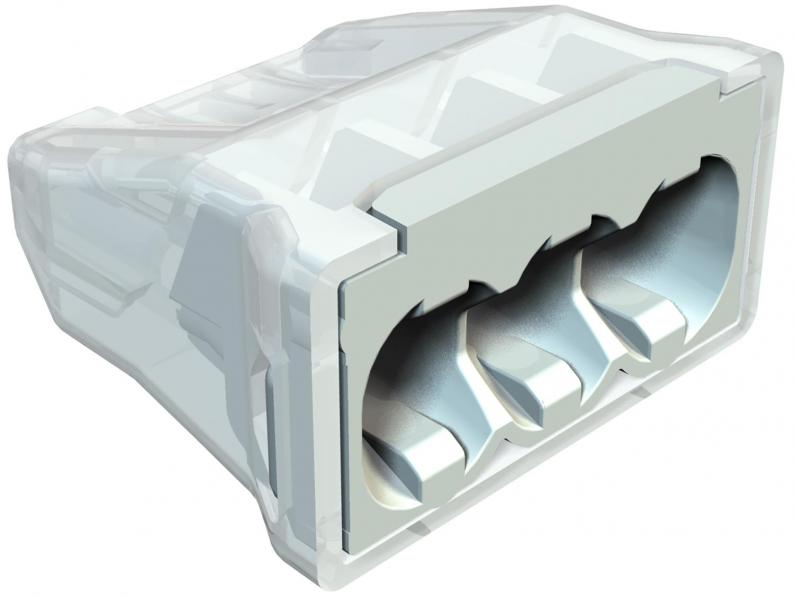

Screwless terminal, 3-pole
Type 61 325 LGR | Item no. 2054485 | EAN 4012195879916
Item no. / Type
2054485 / 61 325 LGR
No. of terminals
3
Colour
Light grey; RAL 7035
Smallest selling unit: 100 piece
100piece
Description
Tested according to EN 60998
Screwless terminal to connect single-strand cables.
Nominal cross-section:
3 x 0.5 mm² to 2.5 mm² single-wire conductors
3 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductors
Rated voltage 450 V
Rated current 24 A
Stripping length: 8-9 mm
Test opening: Phase tester and testing pin (max. Ø 2 mm)
Max. approved ambient temperature according to EN 60998: –5 to +90 °C.
Screwless terminal to connect single-strand cables.
Nominal cross-section:
3 x 0.5 mm² to 2.5 mm² single-wire conductors
3 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductors
Rated voltage 450 V
Rated current 24 A
Stripping length: 8-9 mm
Test opening: Phase tester and testing pin (max. Ø 2 mm)
Max. approved ambient temperature according to EN 60998: –5 to +90 °C.
Technical data

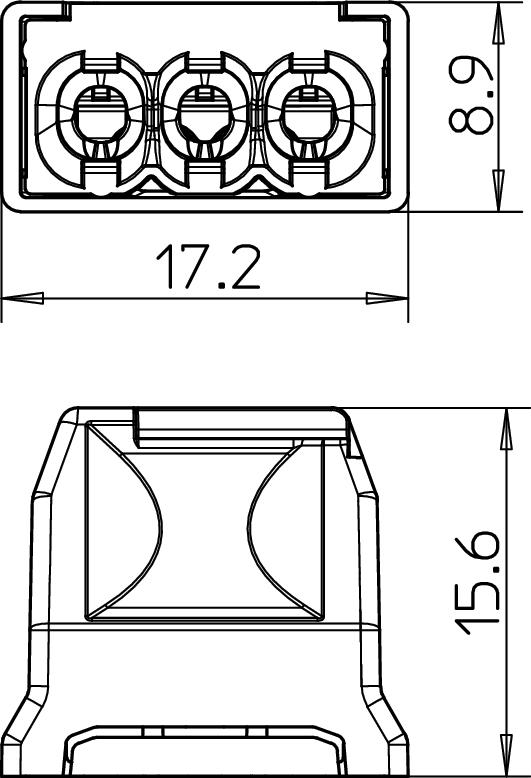

Dimensions
| Length | 17,2 mm |
|---|---|
| Width | 15,6 mm |
| Height | 8,9 mm |
Technical data
| Pole number | 3 |
|---|---|
| Nominal current | 24 A |
| Nominal voltage | 450 V |
| Suitable for solid conductors | no |
| Suitable for flexible conductors | no |
| Suitable for multi-wire conductors | yes |
| With actuating levers | no |
| Connectable conductor cross-section, single-wire, max. | 2,5 mm² |
| Connectable conductor cross-section, single-wire, min. | 0,5 mm² |
| Connectable conductor cross-section, multi-wire, max. | 2,5 mm² |
| Connectable conductor cross-section, multi-wire, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 0,5 mm² |
| Cross-section | 3 x 0.5 mm² to 2.5 mm² single-wire conductors 3 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductors mm² |
| No. of terminals | 3 |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C |
| Dimension | 3x2,5mm² |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
