Screw-in beam clamp, with thread
Type FL1-G M8 TG | Item no. 1488074 | EAN 4012195151036
Item no. / Type
Length
Width
Height
Breaking load
Flange thickness F max.
Flange thickness F min.
Smallest selling unit: 50 piece
50piece
Description
With thread.
Max. tightening torque: 8 Nm
Max. tightening torque: 8 Nm
Technical data

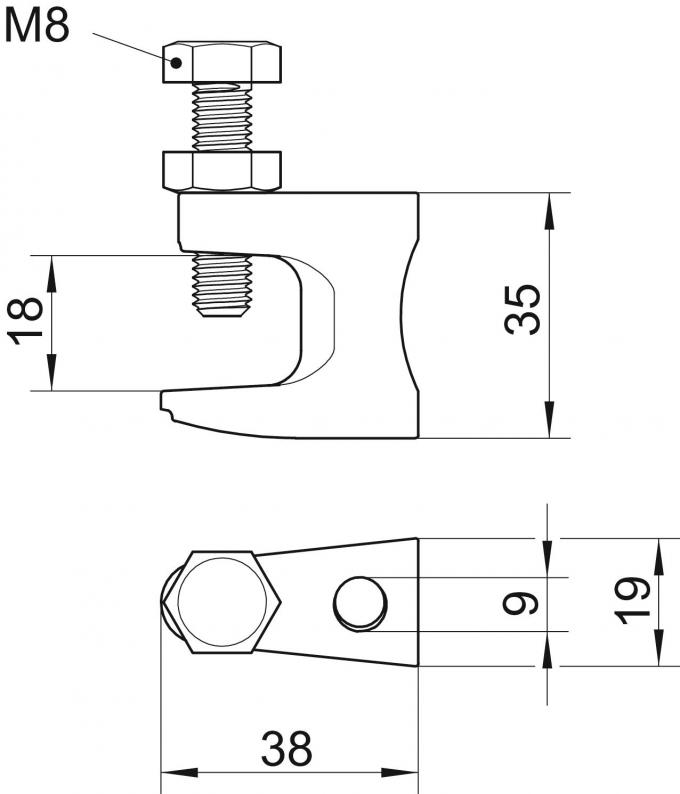

Dimensions
| Length | 38 mm |
|---|---|
| Width | 19 mm |
| Height | 35 mm |
| Dimension L | 38 mm |
| Dimension B | 19 mm |
| Dimension H | 35 mm |
| Dimension F | 18 mm |
| Dimension G (mm) | M8 |
Technical data
| Thread metric | 8 |
|---|---|
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load | 1,2 kN |
| Suitable for metric threaded rod | 8 |
| Max. Tightening torque | 8 Nm |
| Fastening type | Bolts |
| Connection type/component | Thread |
| Flange thickness F max. | 18 mm |
| Flange thickness F min. | 0 mm |
| Dimension | 0-17mm |
| Material | Cast iron |
Downloads
0 selected
Data sheet (1)
Declarations (4)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Width
Height
Breaking load
Flange thickness F max.
Flange thickness F min.
Item no.
FL1-G M8 TG
38
19
35
1,2
18
0
1488074
FL2-G M10 TG
44
21
42
2,5
20
0
1488082
FL3-G M12 TG
58
23,5
54
3,5
26
0
1488090
Length
Width
Height
Breaking load
Flange thickness F max.
FL1-G M8 TG
Item no.
1488074
Length
38
Width
19
Height
35
Breaking load
1,2
Flange thickness F max.
18
Flange thickness F min.
0
FL2-G M10 TG
Item no.
1488082
Length
44
Width
21
Height
42
Breaking load
2,5
Flange thickness F max.
20
Flange thickness F min.
0
FL3-G M12 TG
Item no.
1488090
Length
58
Width
23,5
Height
54
Breaking load
3,5
Flange thickness F max.
26
Flange thickness F min.
0
