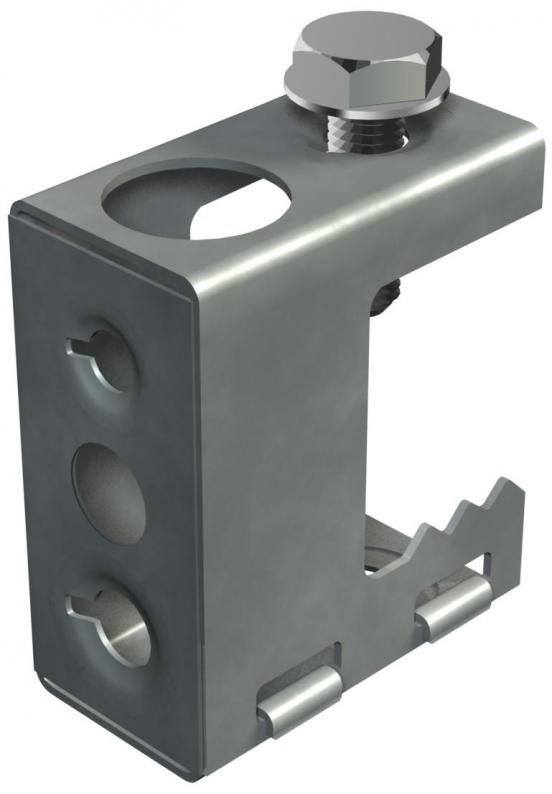

Screw-in beam clamp, universal
Type TK 213 | Item no. 1484702 | EAN 4012195145936
Item no. / Type
1484702 / TK 213
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
Description
Various fastening options (horizontal and vertical).
Technical data
Dimensions
| Height | 35 mm |
|---|---|
| Dimension B | 15,8 mm |
| Dimension H | 35 mm |
Technical data
| Fastening hole | 6,5 mm |
|---|---|
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load | 0,55 kN |
| Fastening type | Bolts |
| Connection type/component | Miscellaneous |
| Flange thickness F max. | 13 mm |
| Flange thickness F min. | 2 mm |
| Dimension | 2-13mm |
| Surface | Zinc slat |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Height
Fastening hole
Breaking load
Flange thickness F max.
Flange thickness F min.
Item no.
TK 213
35
6,5
0,55
13
2
1484702
TK 213
Item no.
1484702
Height
35
Fastening hole
6,5
Breaking load
0,55
Flange thickness F max.
13
Flange thickness F min.
2
