Screed box for GES R2

Screed box for GES R2

Type UD GES R2
|
Item no. 7428526
|
EAN 4012196459483
Show all variants
Item no. / Type
7428526 / UD GES R2

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

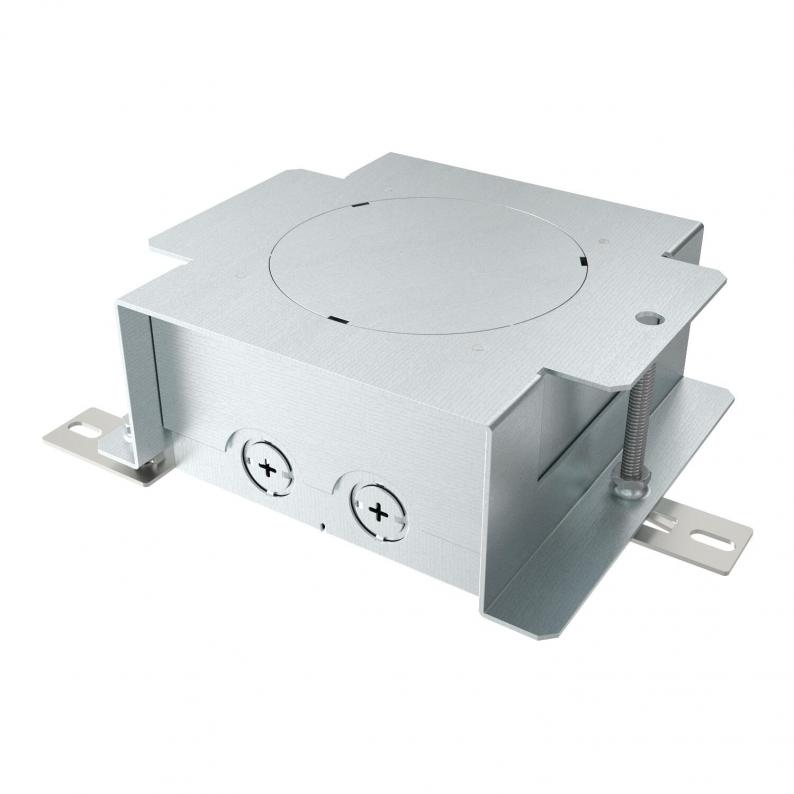

Height-adjustable screed box for the installation of the installation socket of the GES R2 floor socket.
With 2x2 insertion openings for installation pipes (M20/M25).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Screed height, min.85 mm
Screed height, max.130 mm
Height-adjustment range, min.85 mm
Height-adjustment range, max.130 mm
Minimum screed height85
Suitable for screed-covered underfloor ductsno
Suitable for screed-flush closed underfloor ductsno
Seal installation optionno
Decouplableno
Floor plateyes
Installation diameter122
Suitable for underfloor ductsno
Suitable for cavity floor installationno
Suitable for raised floor installationno
Installation opening for flush-mount unitRound
Expansion optionFor installation of accessories
For pipe connectionyes
Version forRound
SurfaceStrip galvanized
MaterialSteel

Materials and Packaging

Packaging made completely from recycled cardboard.yes

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate7,6782 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Certificates (1)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

UD GES R2
Item no.
7428526
Screed height, min.
85
Screed height, max.
130
