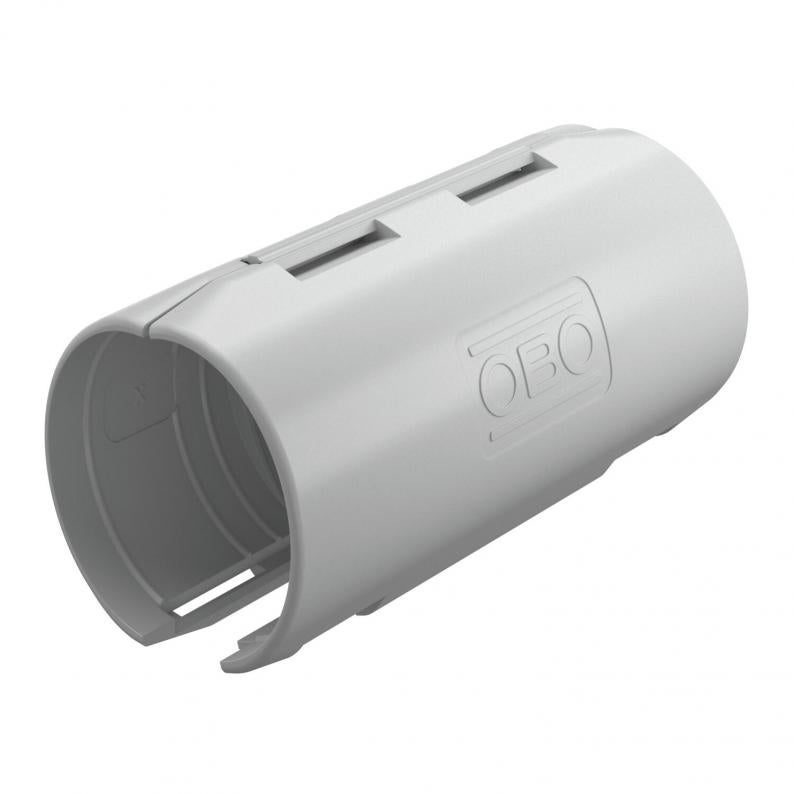

Quick pipe connecting sleeve, light grey

Quick pipe connecting sleeve, light grey

Type 3000 MMS M32 LGR
|
Item no. 2154087
|
EAN 4012196870103
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

Description

Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 40
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

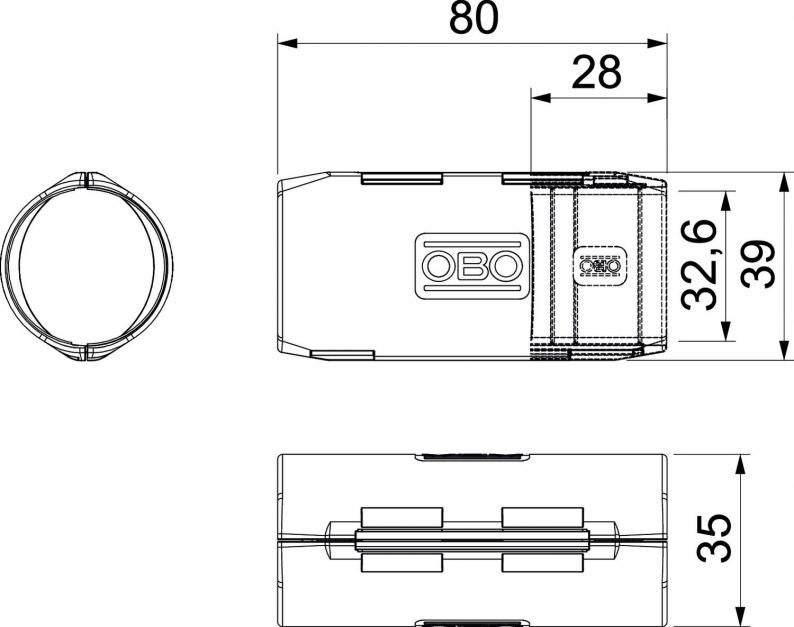

Dimensions

Dimension L80 mm
Dimension d32,6 mm
Dimension B39 mm
Dimension L128 mm

Technical data

Halogen-freeyes
SizeM32
Polished surfaceno
Permitted temperature range, min.0 °C
Permitted temperature range, max.60 °C
DimensionM32
MaterialPolypropylene
ColourLight grey; RAL 7035

Environmental Data

0,0584 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0584 kg CO2e / 1 Piece
