PYROPLUG® Peg plugs
Type FBA-SN78 | Item no. 7202557 | EAN 4012196434510
Item no. / Type
7202557 / FBA-SN78
Smallest selling unit: 4 piece
4piece
Description
Plug for cable insulation.
Protect the FBA plugs against water in order to guarantee safe foaming in case of fire.
Protect the FBA plugs against water in order to guarantee safe foaming in case of fire.
Technical data

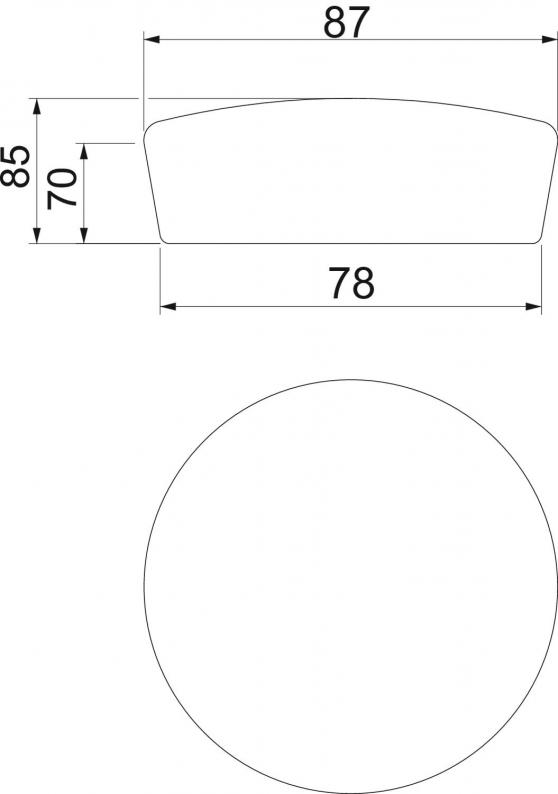

Dimensions
| Height | 70 mm |
|---|---|
| Dimension d | 78 mm |
| Dimension d min. | 87 mm |
Technical data
| Diameter | 78 mm |
|---|---|
| Accessories required | yes |
| Fire protection version | Foam plug |
| Shape | Round |
| For opening, max. | 78 mm |
| For opening, min. | 68 mm |
| Dimension | Ø78x70mm |
| Material | Permanently elastic, closed-pore foam |
| Colour | Brown |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (3)
(4)
Certificates (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Variants
Type
Dimension d
Dimension d min.
For opening, max.
For opening, min.
Item no.
FBA-SN78
78
87
78
68
7202557
FBA-SN78
Item no.
7202557
Dimension d
78
Dimension d min.
87
For opening, max.
78
For opening, min.
68
