Plug-in seal for pipes, light grey

Plug-in seal for pipes, light grey

Type EDR 25 16-20 LGR | Item no. 2011506 | EAN 4012195246909

Show all variants
Item no. / Type
for diameter, max.
for diameter, min.
Size
Colour
Light grey; RAL 7035

Smallest selling unit: 50 piece

DescriptionTechnical dataDownloadsVariants

Description

Plug-in seal for junction boxes for direct insertion of metric pipes
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 55
  • M25 entry
  • M32 entry
  • M40 entry
  • CO₂ footprint (PCF)

Technical data

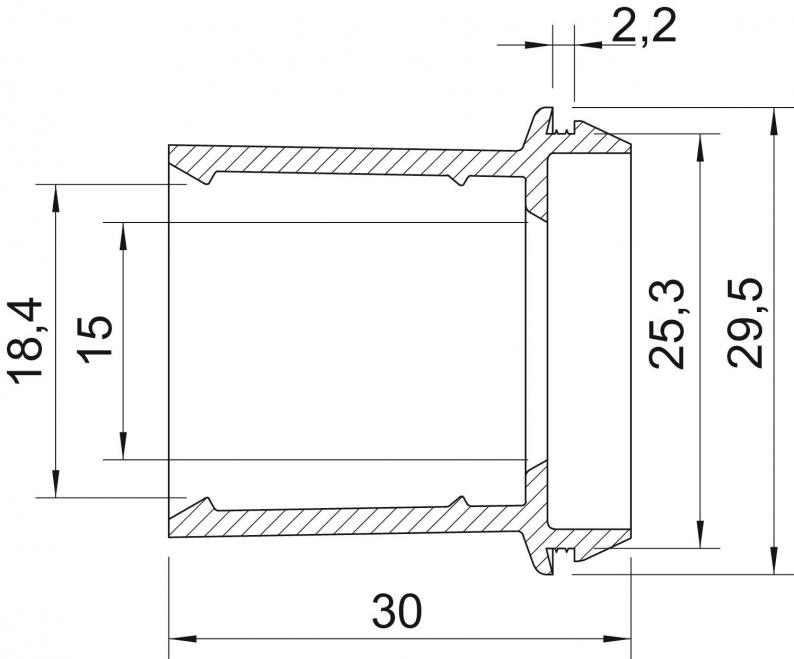

Dimensions

Dimension D129,5 mm
Dimension D225,3 mm
Dimension L30 mm
Dimension A2,2 mm
Dimension D315 mm
Dimension D418,4 mm

Technical data

for diameter, max.20 mm
for diameter, min.16 mm
Halogen-freeyes
Protection ratingIP55
SizeM25
for wall thickness, max.2,2
for wall thickness, min.2,2
Nominal diameter25 mm
Version forOpen
DimensionØ25/16-20
MaterialThermoplastic elastomer
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,0121 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

for diameter, max.
for diameter, min.
Size
EDR 25 16-20 LGR
Item no.
2011506
for diameter, max.
20
for diameter, min.
16
Size
M25
Colour
Light grey; RAL 7035
EDR 25 20-25 LGR
Item no.
2011514
for diameter, max.
25
for diameter, min.
20
Size
M25
Colour
Light grey; RAL 7035
EDR 32 25-32 LGR
Item no.
2011530
for diameter, max.
32
for diameter, min.
25
Size
M32
Colour
Light grey; RAL 7035
EDR 40 32-40 LGR
Item no.
2011546
for diameter, max.
40
for diameter, min.
32
Size
M40
Colour
Light grey; RAL 7035
