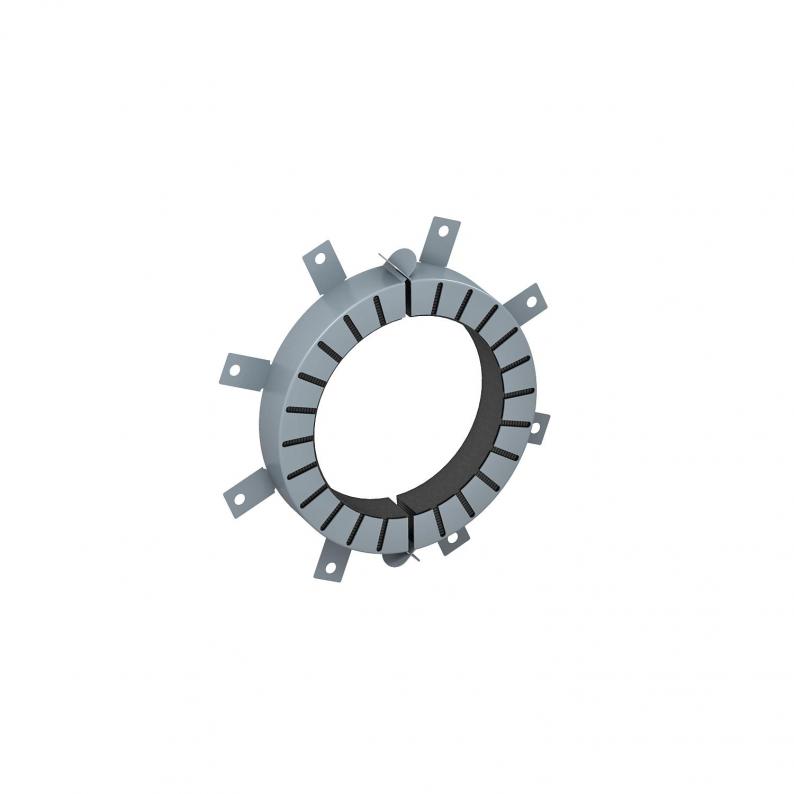

Pipe sleeve with 8 fastening straps
Type TCX-180 | Item no. 7202212 | EAN 4012196086917
Item no. / Type
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
Dimension h
Smallest selling unit: 1 piece
1piece
Description
Pipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
Technical data

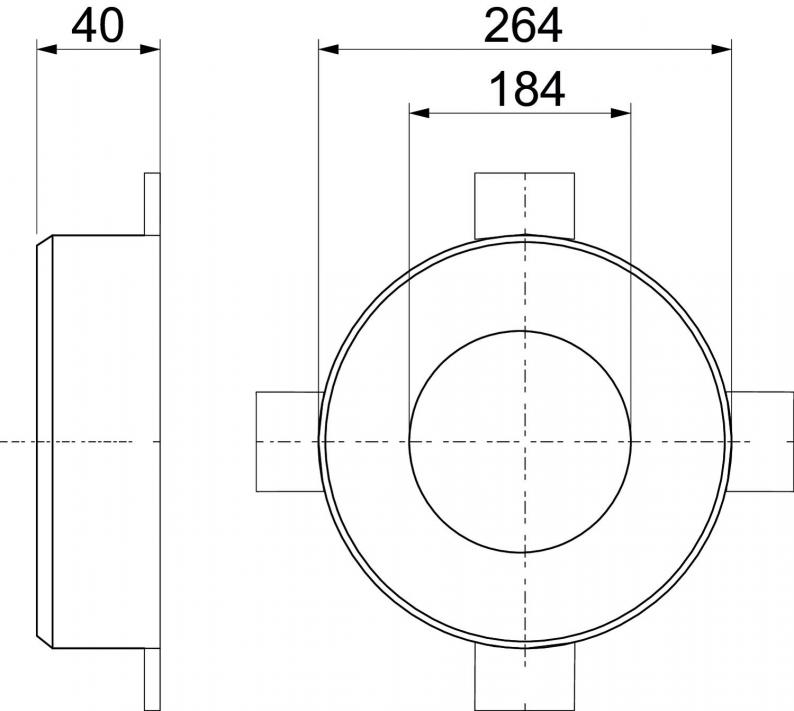

Dimensions
| Length | 264 mm |
|---|---|
| Width | 264 mm |
| Height | 40 mm |
| Dimension d | 184 mm |
| Dimension d min. | 264 mm |
| Dimension h | 40 mm |
Technical data
| For pipe diameter, max. | 182 mm |
|---|---|
| For pipe diameter, min. | 180 mm |
| Accessories required | yes |
| Dimension | Ø180mm |
| Material | Intumescent material |
| Colour | Grey |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (3)
Declarations (3)
Certificates (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 7202300
Insulation layer creator in a cartridgeType
DSX-K
Smallest selling unit: 1 piece
1piece
Variants
Type
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
Dimension h
Item no.
TCX-180
182
180
184
264
40
7202212
TCX-200
202
200
204
284
40
7202214
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
TCX-180
Item no.
7202212
For pipe diameter, max.
182
For pipe diameter, min.
180
Dimension d
184
Dimension d min.
264
Dimension h
40
TCX-200
Item no.
7202214
For pipe diameter, max.
202
For pipe diameter, min.
200
Dimension d
204
Dimension d min.
284
Dimension h
40
