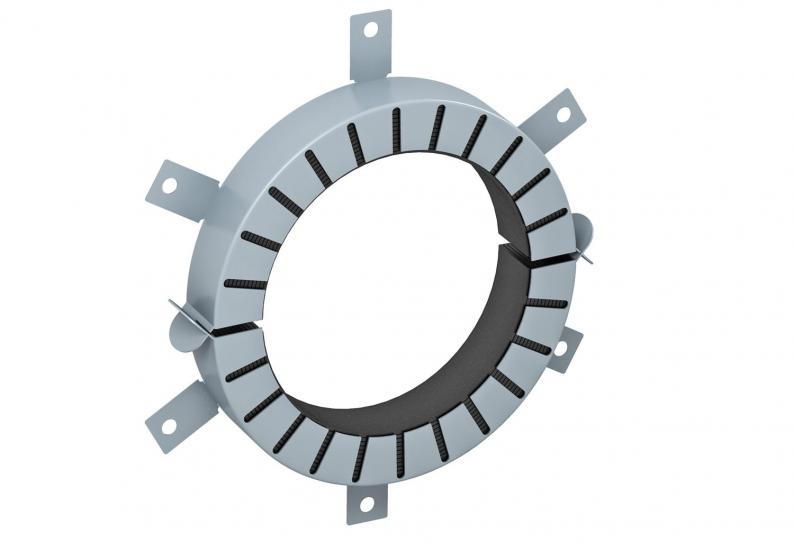

Pipe sleeve with 6 fastening straps
Type TCX-140 | Item no. 7202209 | EAN 4012195856689
Item no. / Type
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
Dimension h
Smallest selling unit: 1 piece
1piece
Description
Pipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
Technical data

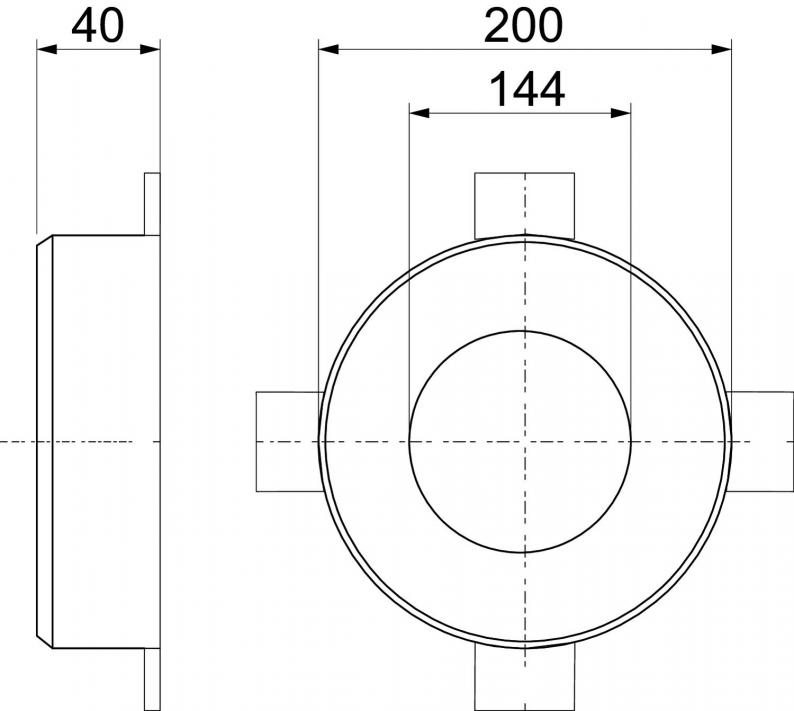

Dimensions
| Length | 200 mm |
|---|---|
| Width | 200 mm |
| Height | 40 mm |
| Dimension d | 144 mm |
| Dimension d min. | 200 mm |
| Dimension h | 40 mm |
Technical data
| For pipe diameter, max. | 142 mm |
|---|---|
| For pipe diameter, min. | 140 mm |
| Accessories required | yes |
| Dimension | Ø140mm |
| Material | Intumescent material |
| Colour | Grey |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (3)
Declarations (5)
Certificates (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 7202300
Insulation layer creator in a cartridgeType
DSX-K
Smallest selling unit: 1 piece
1piece
Variants
Type
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
Dimension h
Item no.
TCX-140
142
140
144
200
40
7202209
TCX-160
162
160
164
220
40
7202210
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
TCX-140
Item no.
7202209
For pipe diameter, max.
142
For pipe diameter, min.
140
Dimension d
144
Dimension d min.
200
Dimension h
40
TCX-160
Item no.
7202210
For pipe diameter, max.
162
For pipe diameter, min.
160
Dimension d
164
Dimension d min.
220
Dimension h
40
