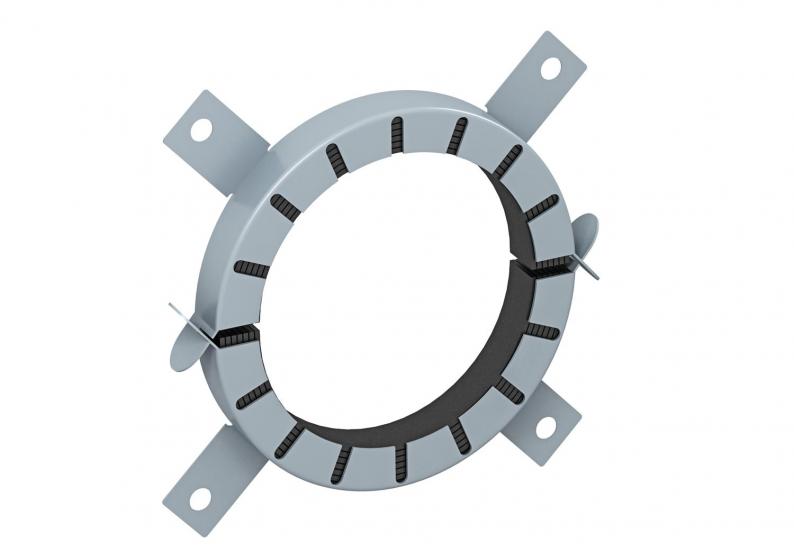

Pipe sleeve with 4 fastening straps
Type TCX-075 | Item no. 7202205 | EAN 4012195856610
Item no. / Type
For pipe diameter, min.
For pipe diameter, max.
Dimension d
Dimension d min.
Dimension h
Smallest selling unit: 1 piece
1piece
Description
Pipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors of M6 threaded rods up to size 75 mm, then M8.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors of M6 threaded rods up to size 75 mm, then M8.
Technical data

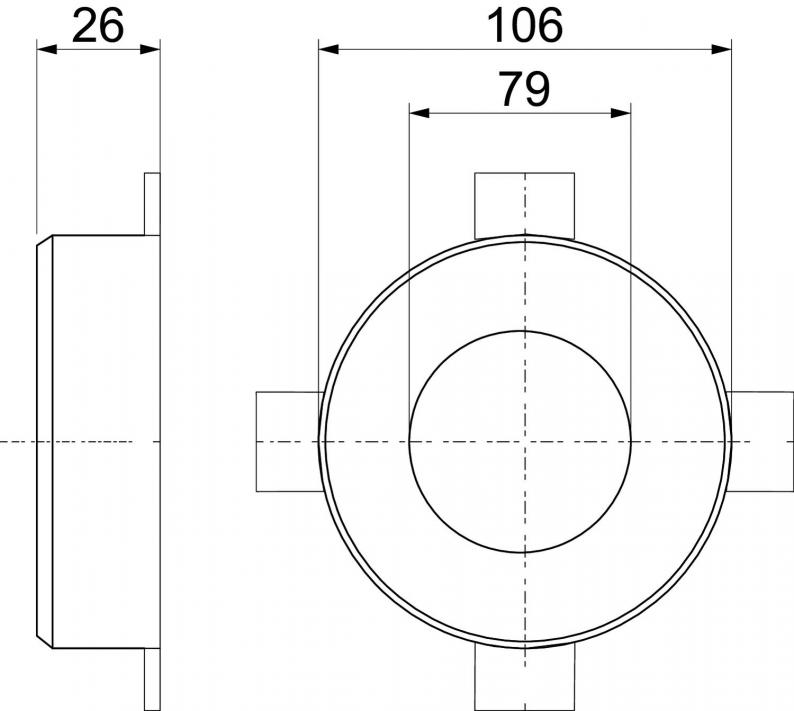

Dimensions
| Length | 106 mm |
|---|---|
| Width | 106 mm |
| Height | 26 mm |
| Dimension d | 79 mm |
| Dimension d min. | 106 mm |
| Dimension h | 26 mm |
Technical data
| For pipe diameter, min. | 75 mm |
|---|---|
| For pipe diameter, max. | 77 mm |
| Accessories required | yes |
| Dimension | Ø75mm |
| Material | Intumescent material |
| Colour | Grey |
