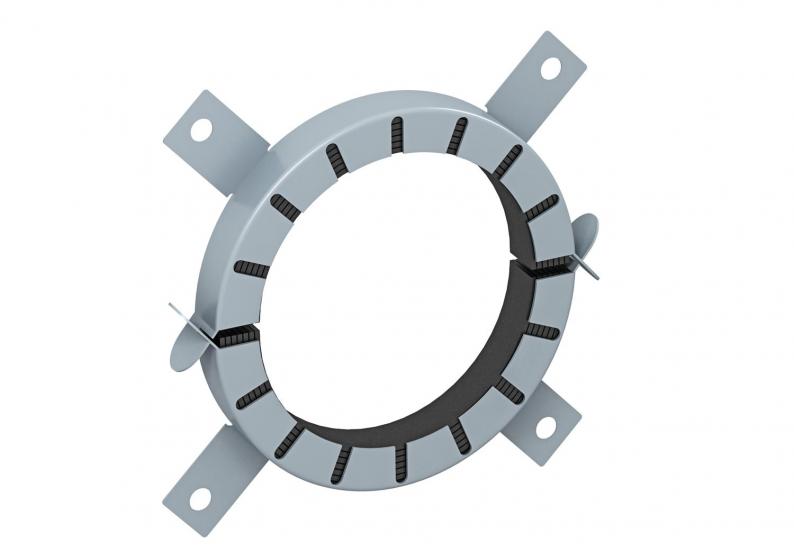

Pipe sleeve with 4 fastening straps
Type TCX-063 | Item no. 7202204 | EAN 4012195856603
Item no. / Type
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
Dimension h
Smallest selling unit: 1 piece
1piece
Description
Pipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors of M6 threaded rods up to size 75 mm, then M8.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors of M6 threaded rods up to size 75 mm, then M8.
Technical data

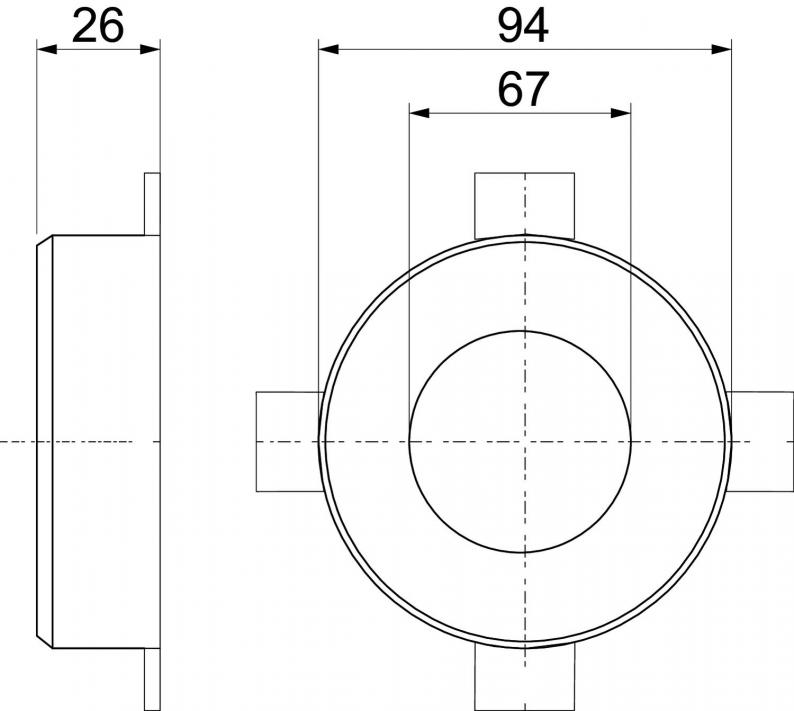

Dimensions
| Length | 94 mm |
|---|---|
| Width | 94 mm |
| Height | 26 mm |
| Dimension d | 67 mm |
| Dimension d min. | 94 mm |
| Dimension h | 26 mm |
Technical data
| For pipe diameter, max. | 65 mm |
|---|---|
| For pipe diameter, min. | 63 mm |
| Accessories required | yes |
| Dimension | Ø63mm |
| Material | Intumescent material |
| Colour | Grey |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (3)
Declarations (5)
Certificates (5)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 7202300
Insulation layer creator in a cartridgeType
DSX-K
Smallest selling unit: 1 piece
1piece
Variants
Type
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
Dimension h
Item no.
TCX-063
65
63
67
94
26
7202204
TCX-075
77
75
79
106
26
7202205
TCX-090
92
90
94
132
26,6
7202206
TCX-110
112
110
114
155
26,6
7202207
TCX-125
127
125
129
172
40
7202208
For pipe diameter, max.
For pipe diameter, min.
Dimension d
Dimension d min.
Dimension h
TCX-063
Item no.
7202204
For pipe diameter, max.
65
For pipe diameter, min.
63
Dimension d
67
Dimension d min.
94
Dimension h
26
TCX-075
Item no.
7202205
For pipe diameter, max.
77
For pipe diameter, min.
75
Dimension d
79
Dimension d min.
106
Dimension h
26
TCX-090
Item no.
7202206
For pipe diameter, max.
92
For pipe diameter, min.
90
Dimension d
94
Dimension d min.
132
Dimension h
26,6
TCX-110
Item no.
7202207
For pipe diameter, max.
112
For pipe diameter, min.
110
Dimension d
114
Dimension d min.
155
Dimension h
26,6
TCX-125
Item no.
7202208
For pipe diameter, max.
127
For pipe diameter, min.
125
Dimension d
129
Dimension d min.
172
Dimension h
40
