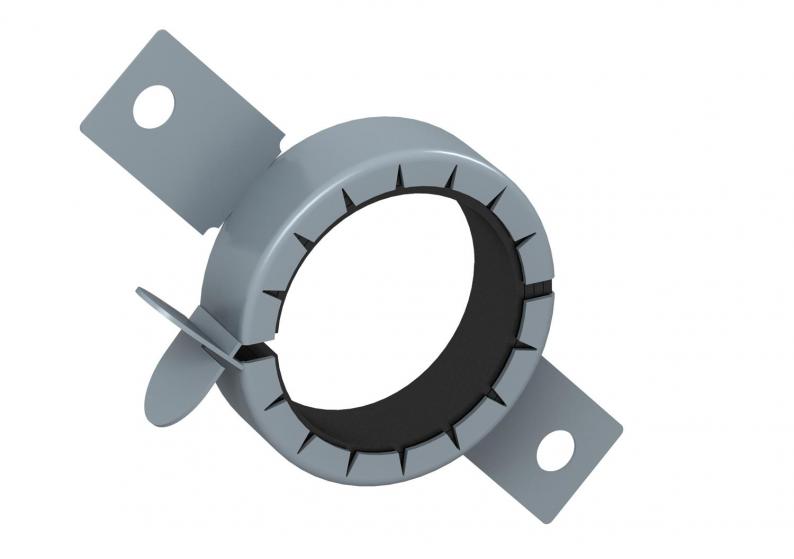

Pipe sleeve with 2 fastening straps

Type TCX-032 | Item no. 7202200 | EAN 4012195856559

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

For pipe diameter, max.

For pipe diameter, min.

Dimension d

Dimension d min.

Dimension h

Smallest selling unit: 1 piece

Description Technical data Downloads Accessories Variants

Description

Pipe sleeve for combustible pipes.

If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M6 threaded rods.

Technical data

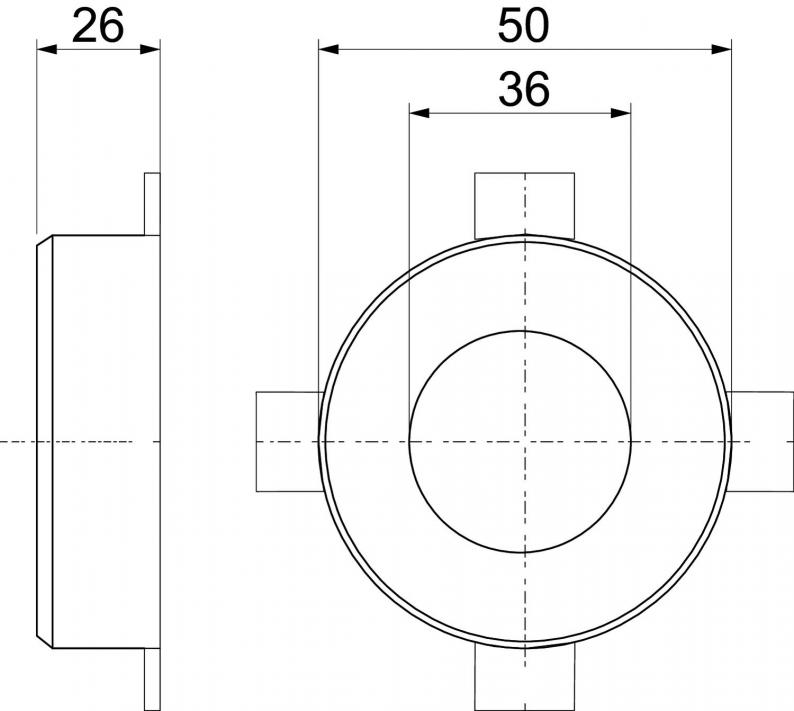

Dimensions

Length	50 mm
Width	50 mm
Height	26 mm
Dimension d	36 mm
Dimension d min.	50 mm
Dimension h	26 mm

Technical data

For pipe diameter, max.	34 mm
For pipe diameter, min.	32 mm
Accessories required	yes
Dimension	Ø32mm
Material	Intumescent material
Colour	Grey
