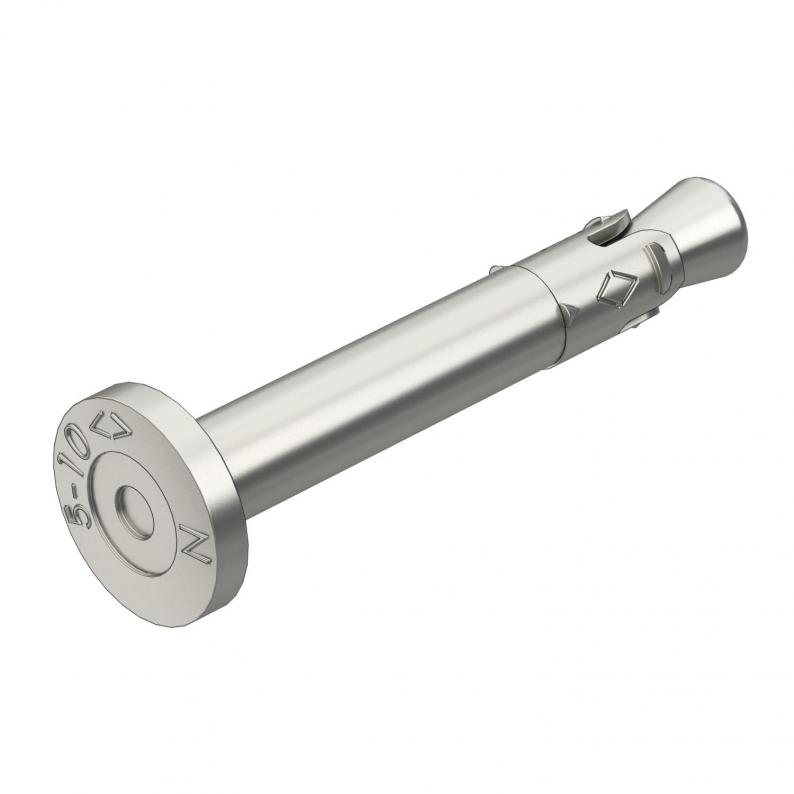

Nail anchor N-K with nail head, V4A
Type N-K 6-5/44 A4 | Item no. 3498393 | EAN 4012196429578
Item no. / Type
3498393 / N-K 6-5/44 A4
Smallest selling unit: 50 piece
50piece
Description
The nail anchor N can be used for multiple fastenings of non-load-bearing systems, indoors and outdoors, in cracked and non-cracked concrete, thereby combining the benefits of a bolt tie with even easier mounting. The nail anchor only needs to be hammered into the drill hole. When the load occurs, the nail anchor spreads itself and bolts itself in the drill hole.
European technical approval ETA-11/0240, including characteristic values under fire exposure to fire resistance R 120.
Technical data

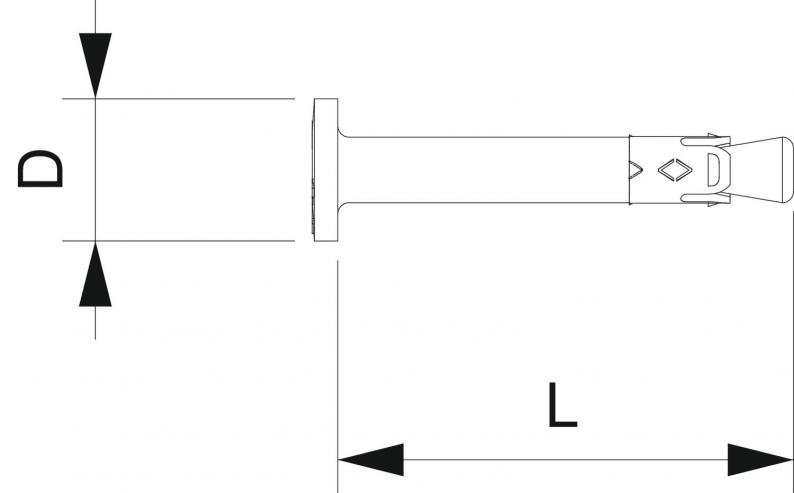

Dimensions
| Length | 44 mm |
|---|---|
| Dimension L | 44 mm |
| Dimension d min. | 13 mm |
Technical data
| Self-drilling | no |
|---|---|
| Approvals available | yes |
| Fastening unit | Miscellaneous |
| Clamping strength | 5 mm |
| Version for | Lightning strike |
| Drill hole diameter, min. | 6 mm |
| Drill hole depth | 40 mm |
| Dimension | 6x44mm |
| Surface | Bright, treated |
| Material | Stainless steel |
| Colour | stainless steel |
| Suitable for material | Concrete |
| Mounting type, anchor, tie | Push-through mounting |
