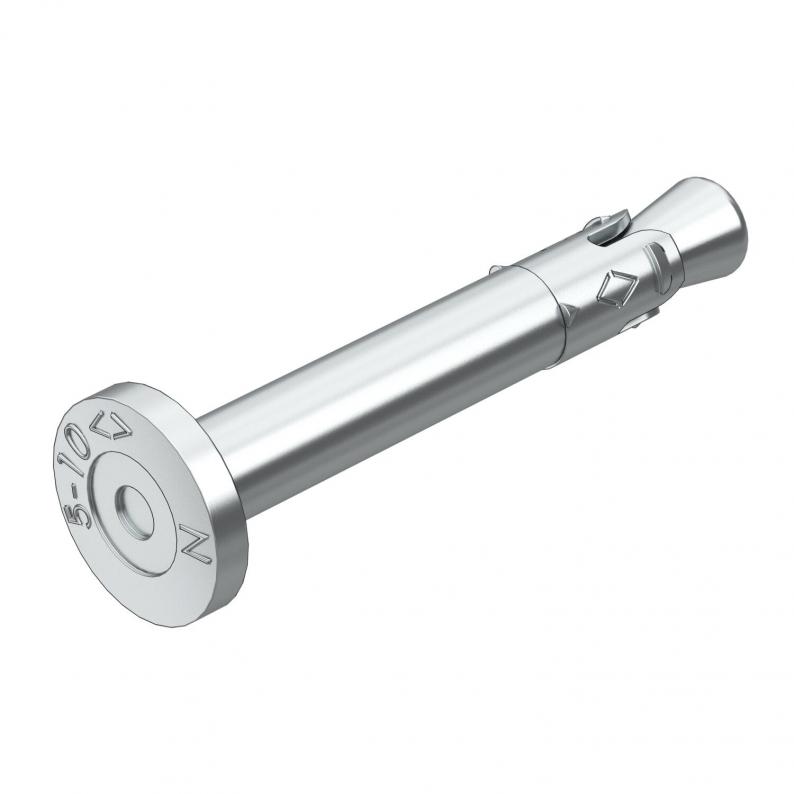

Nail anchor N-K with nail head
Type N-K 6-5-10/44 | Item no. 3498390 | EAN 4012196411924
Item no. / Type
3498390 / N-K 6-5-10/44
Smallest selling unit: 100 piece
100piece
Description
The nail anchor N-K can be used for multiple fastenings of non-load-bearing systems and in cracked and non-cracked concrete, thereby combining the benefits of a bolt tie with even easier mounting. The nail anchor only needs to be hammered into the drill hole. When the load occurs, the nail anchor spreads itself and bolts itself in the drill hole.
European Technical Approval ETA-11/0240, including characteristic values under fire exposure to fire resistance R 120.
Technical data
Dimensions
| Length | 44 mm |
|---|---|
| Dimension L | 44 mm |
| Dimension d min. | 13 mm |
Technical data
| Self-drilling | no |
|---|---|
| Approvals available | yes |
| Fastening unit | Miscellaneous |
| Clamping strength | 5 mm |
| Version for | Lightning strike |
| Drill hole diameter, min. | 6 mm |
| Drill hole depth | 40 mm |
| Dimension | 6x44mm |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Suitable for material | Concrete |
| Mounting type, anchor, tie | Push-through mounting |
| Clamping range, max. | 10 mm |
| Clamping range, min. | 5 mm |
