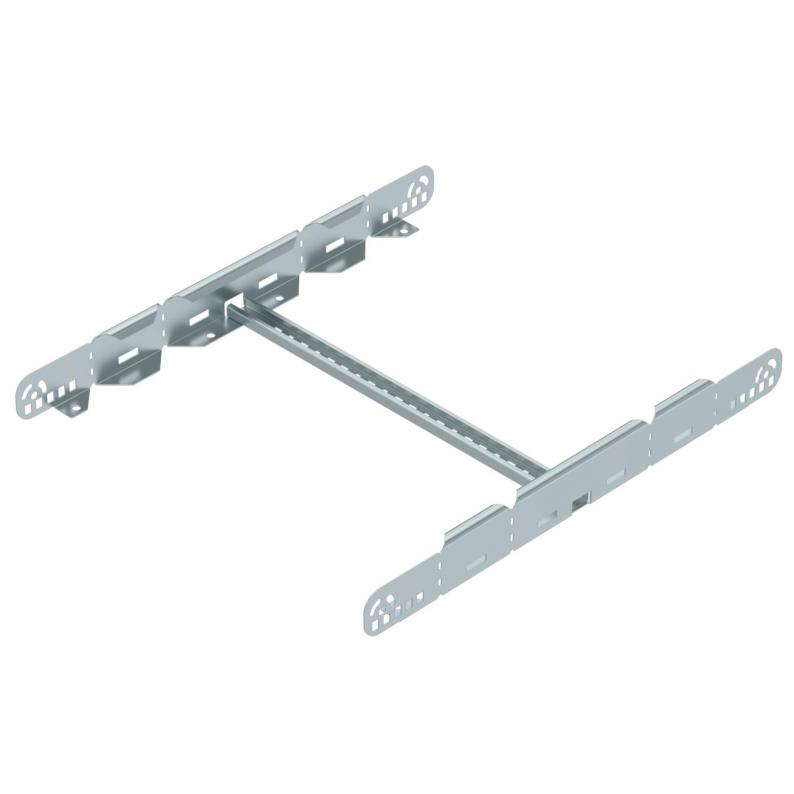

Multifunctional connector FS

Multifunctional connector FS

Type LMFV 650 FS | Item no. 6225716 | EAN 4012196443277

Show all variants
Item no. / Type
Width
Height
Plate thickness
Dimension B
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Multifunctional connector for joining cable ladders with a side height of 60 mm. Symmetrical and asymmetrical reductions, infinitely-adjustable bends between 0–60° and add-on tees can be created.


  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length604 mm
Width500 mm
Height60 mm
Dimension B500 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1,5 mm
Suitable for mesh cable trayno
Suitable for cable ladderyes
Suitable for cable trayno
Adjustable connector, horizontalno
Articulated connector, verticalno
Suitable for cable support system width, max.500 mm
Suitable for cable support system width, min.500 mm
Suitable for cable tray system height60 mm
Version forStraight and angle connector
Connection typeScrew connector
Dimension60x500
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate5,4278 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
Dimension B
LMFV 640 FS
Item no.
6225714
Width
400
Height
60
Plate thickness
1,5
Dimension B
400
Surface
Strip galvanized
Material
Steel
LMFV 650 FS
Item no.
6225716
Width
500
Height
60
Plate thickness
1,5
Dimension B
500
Surface
Strip galvanized
Material
Steel
LMFV 660 FS
Item no.
6225718
Width
600
Height
60
Plate thickness
1,5
Dimension B
600
Surface
Strip galvanized
Material
Steel
