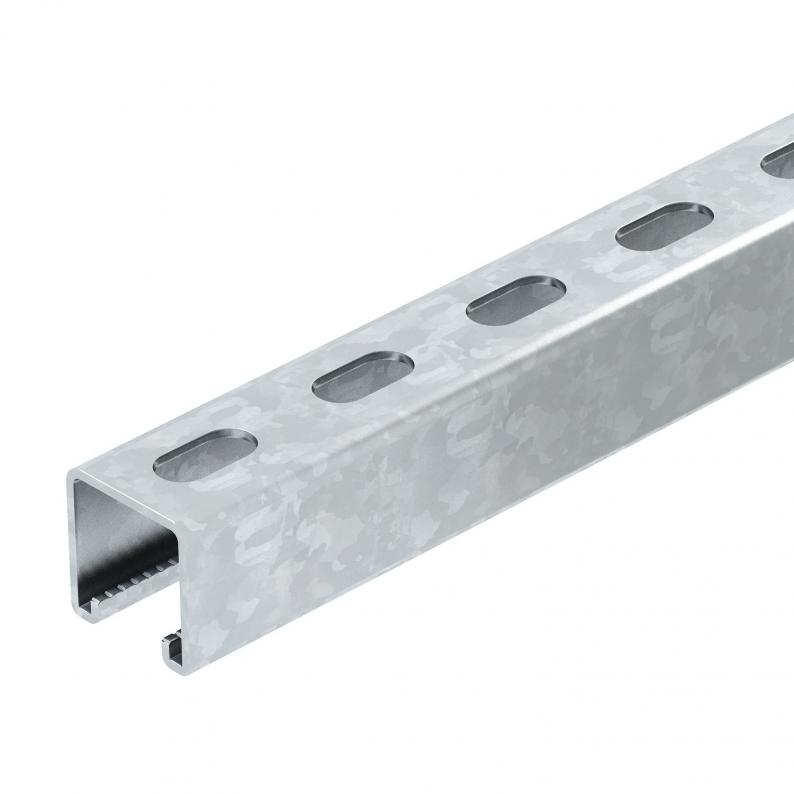

MSL4141 mounting rail, slot 22 mm, FS, perforated

Type MSL4141P6000FS | Item no. 1122974 | EAN 4012195698166

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

1122974 / MSL4141P6000FS

Surface

Strip galvanized

Smallest selling unit: 6 m

Description Technical data Downloads Accessories Variants

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

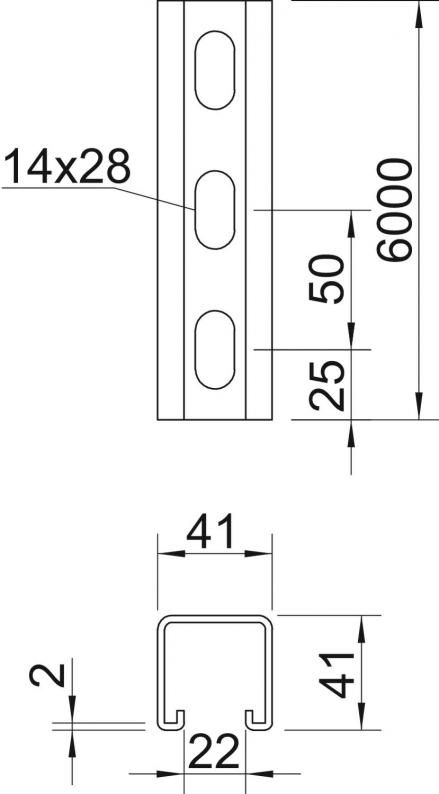

Dimensions

Length	6000 mm
Width	41 mm
Height	41 mm
Dimension L	6000 mm

Technical data

Maintain electrical functions	yes
Slot width	22 mm
Material thickness	2 mm
Static value A	2,45 cm²
Static value ly	5,18 cm⁴
Static value lz	7,56 cm⁴
Static value Wy	2,51 cm³
Static value Wz	2,69 cm³
Hole size	14x28 mm
Profile shape	C profile
Type of perforation	Perforated back
Drill hole spacing, centre	50 mm
With perforation	yes
Breakable	no
With toothing	yes
Version for	Single profile
Dimension	6000x41x41
Surface	Strip galvanized
Material	Steel
CO2 Footprint (GWP) Cradle-to-Gate	4,772 kg CO₂e / 1 Meter
