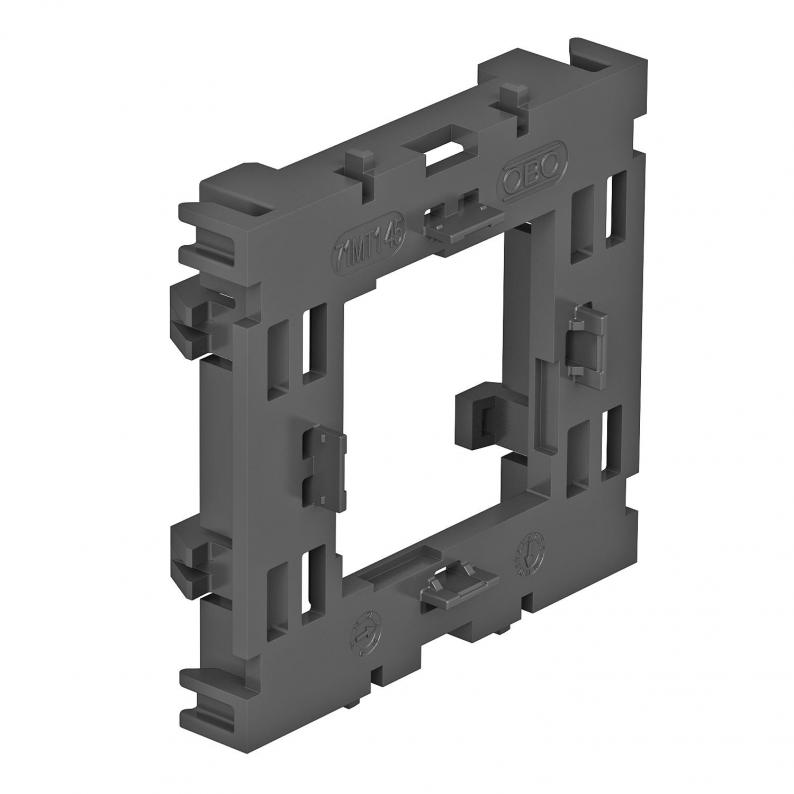

Mounting support 71MT1, single, for Modul 45®

Mounting support 71MT1, single, for Modul 45®

Type 71MT1 45
|
Item no. 6288572
|
EAN 4012195983330
Show all variants
Item no. / Type
Number of units
Accessory mounting type

Smallest selling unit: 10 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Front locking mounting support for Modul 45 data technology systems and Modul 45connect protective contact sockets with Wieland connection.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

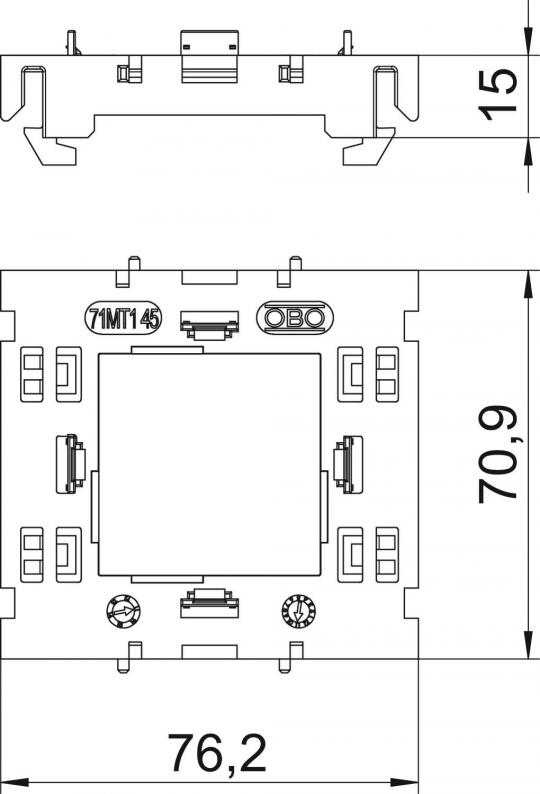

Dimensions

Length71 mm
Width76 mm
Height15 mm

Technical data

Halogen-freeyes
Number of units1
Strain relief optionno
With connection compartmentno
Fastening trackOther
Box mounting typeFront
Accessory mounting typeLock
Device typeGrid 45
Version forOpen
Dimension15x76x71
MaterialPolyamide
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,1071 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Number of units
Accessory mounting type
71MT1 45
Item no.
6288572
Number of units
1
Accessory mounting type
Lock
71MT3 45-2
Item no.
6288574
Number of units
3
Accessory mounting type
Lock
71MT2 45
Item no.
6288576
Number of units
2
Accessory mounting type
Lock
71MTD
Item no.
6288577
Number of units
1
Accessory mounting type
Bolts
