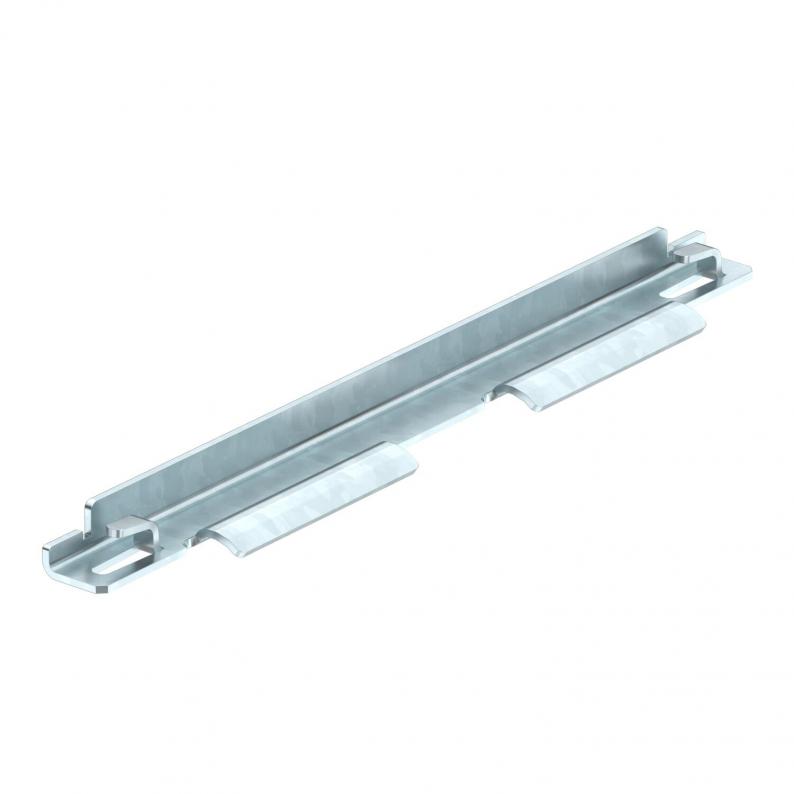

Mesh cable tray connector, long FS
Type GRV 245 FS | Item no. 6016680 | EAN 4012196052578
Item no. / Type
6016680 / GRV 245 FS
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 20 piece
20piece
Description
Long mesh cable tray connectors for screwless straight connection of mesh cable trays.
Two straight connectors, type GRV 245, are used for each connection point.
Can be used from a mesh cable tray width of 100 mm.
The FS variant is used to connect electrogalvanised mesh cable trays, the DD variant to connect hot/hot-dip galvanised mesh cable trays and the VA variant to connect stainless steel mesh cable trays.
Technical data
Dimensions
| Length | 245 mm |
|---|---|
| Width | 30 mm |
| Height | 14 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 245 x 30 |
| Version for | Straight connector |
| Connection type | Screwless connector |
| Dimension | L245mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4117 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Height
Plate thickness
Dimension
Surface
Material
Item no.
GRV 245 FS
30
14
2
L245mm
Strip galvanized
Steel
6016680
GRV 245 FS
Item no.
6016680
Width
30
Height
14
Plate thickness
2
Dimension
L245mm
Surface
Strip galvanized
Material
Steel
