Magic tee 60FS
Type RTM 630 FS | Item no. 6041326 | EAN 4012195879053
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

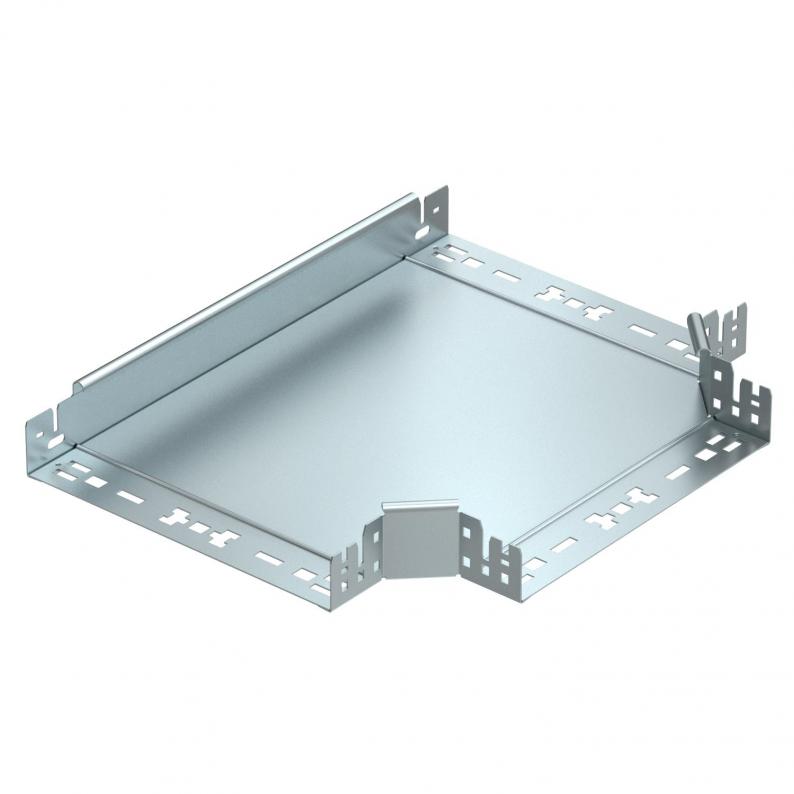

Tee branch piece with quick connector system. For all cable tray types of 60 mm side height.
Technical data

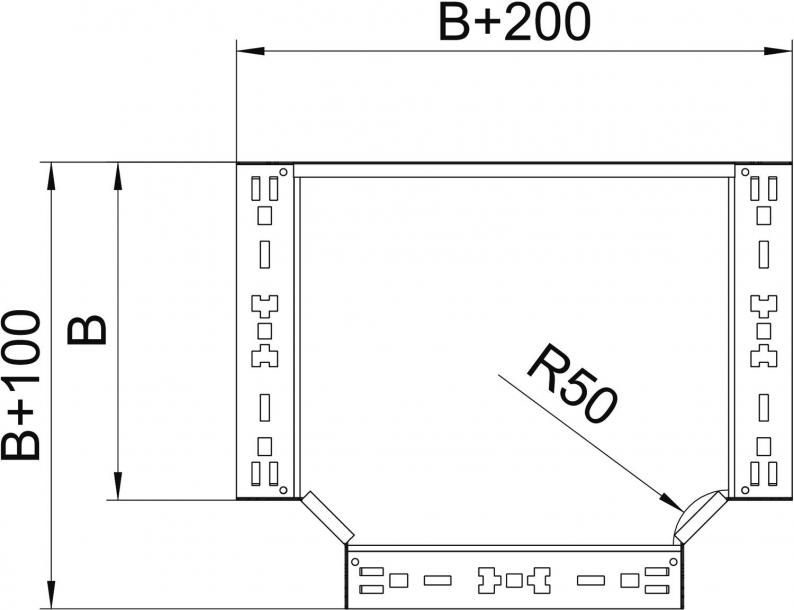

Dimensions
| Width | 300 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 300 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 60x300 |
| Surface | Strip galvanized |
| Material | Steel |
| Fire protection | Use of fire protection ceilings |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,0802 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RTM 630 FS
300
Strip galvanized
Steel
6041326
RTM 640 FS
400
Strip galvanized
Steel
6041328
RTM 650 FS
500
Strip galvanized
Steel
6041330
RTM 660 FS
600
Strip galvanized
Steel
6041332
