Magic straight connector DD
Type FVM 610 DD | Item no. 6065710 | EAN 4012196053797
Item no. / Type
Width
Height
Dimension B
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description

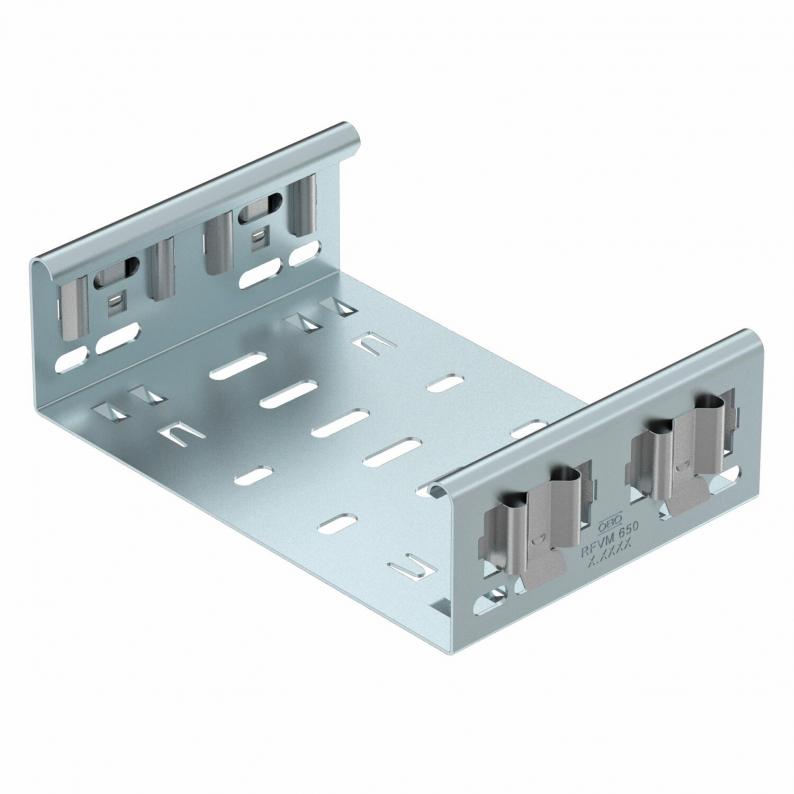

Magic straight connector for direct and screwless joining of Magic fittings with a side height of 60 mm.
The straight connector is equipped with four brackets and can also be used for the direct connection with a cut cable tray with only two brackets mounted to one side. To join a cut cable tray with a fitting, an additional Magic straight connector set is needed.
The straight connector is equipped with four brackets and can also be used for the direct connection with a cut cable tray with only two brackets mounted to one side. To join a cut cable tray with a fitting, an additional Magic straight connector set is needed.
The fitting connector is compatible with cable tray types MKSM, MKSMU, SKSM and SKSMU.
Technical data

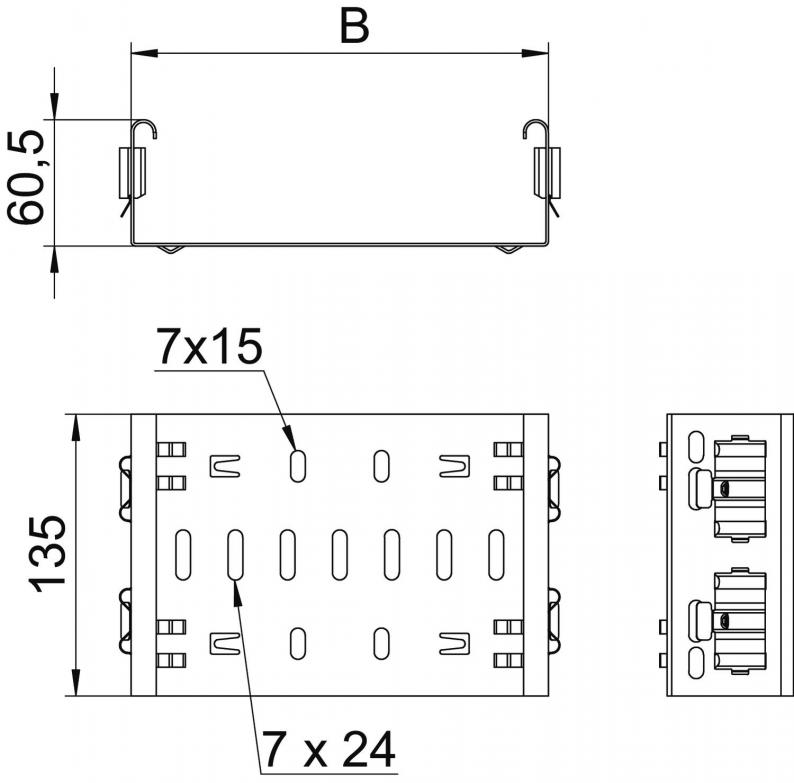

Dimensions
| Length | 135 mm |
|---|---|
| Width | 100 mm |
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight connector |
| Connection type | Screwless connector |
| Dimension | 60x100 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Height
Dimension B
Item no.
FVM 610 DD
100
60
100
6065710
FVM 615 DD
150
60
150
6065712
FVM 620 DD
200
60
200
6065714
FVM 630 DD
300
60
300
6065716
FVM 640 DD
400
60
400
6065718
FVM 650 DD
500
60
500
6065720
FVM 660 DD
600
60
600
6065722
