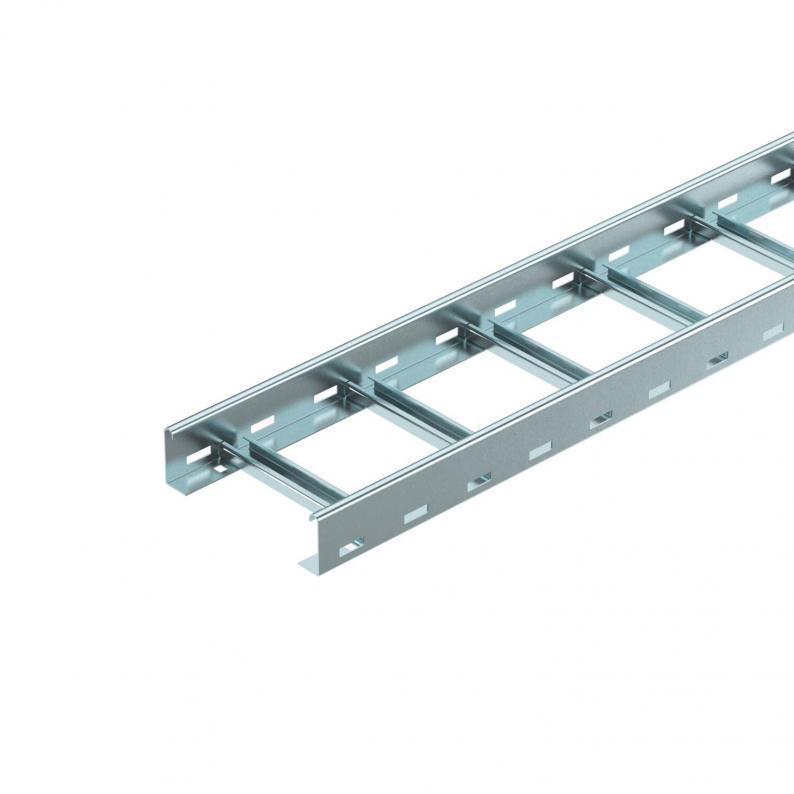

LG 60 cable ladder, 3 m VSF FS
Type LG 620 VSF 3 FS | Item no. 6207518 | EAN 4012196748747
Item no. / Type
6207518 / LG 620 VSF 3 FS
Maintain electrical functions
yes
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
Description
Cable ladder for horizontal routing of cables. Can be used in the widths 200–400 mm as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical functionality classes E30 to E90. With riveted C profile rung, open in an upward direction.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 60 mm |
| Dimension B | 200 mm |
| Rung slot dimension | 17,00 |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | yes |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Usable cross-section | 9800 mm² |
| Rung distance | 150 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Profile (open) |
| Fastening of rung | Blind riveted |
| Rail thickness | 1,5 mm |
| Dimension | 60x200x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Fire protection | Maintenance of electrical function of standard support structure |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,6104 kg CO2e / 1 Meter |
