Junction box X 16

Junction box X 16

Type X16 LGR | Item no. 2005020 | EAN 4012196577446

Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
10
Protection rating
IP67

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

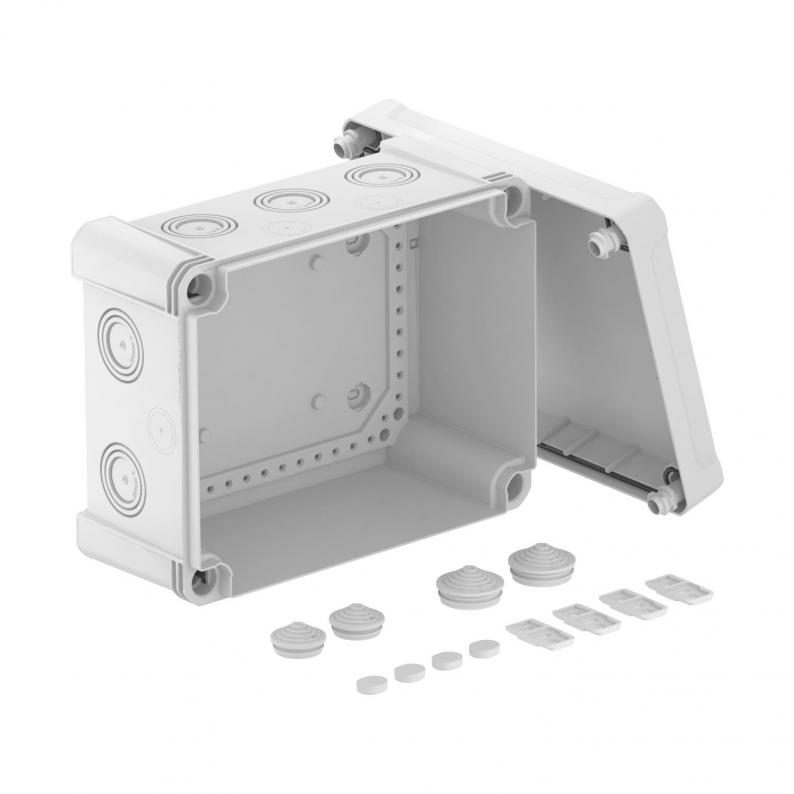

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design with knock-out entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials. Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.
  • ENEC Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 67
  • IK Code 09
  • M25 entry
  • M32 entry
  • M40 entry
  • 10 cable entries ECO
  • Nominal cross-section 16 mm²
  • Nominal voltage 750 V
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

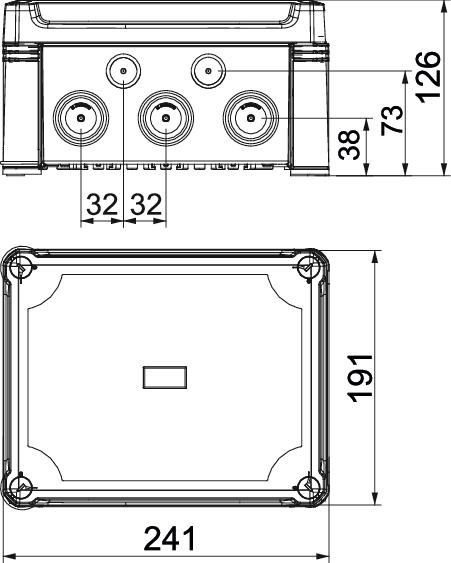

Dimensions

Length241 mm
Width191 mm
Height126 mm
Clear internal dimensions227x177x110 mm

Technical data

Impact-resistantyes
Halogen-freeyes
Fibre-glass reinforcedyes
No. of entries10
Entry from rearno
Transparent lidno
Protection ratingIP67
Nominal voltage750 V
Expandableyes
with lidyes
Sealableyes
Type of entryCuttable stepped membrane
Measured insulation voltage Vi750 V
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofyes
Protection rating IK codeIK09
Max. Conductor cross-section16 mm²
Nominal cross-section, max.16 mm²
Nominal cross-section, min.6 mm²
ShapeRectangular
EquipmentWithout
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>10 x Ø25/32/40</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension240x191x125
MaterialPolycarbonate
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate3,0062 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
X16 LGR
Item no.
2005020
Clear internal dimensions
227x177x110
No. of entries
10
Protection rating
IP67
Colour
Light grey; RAL 7035
X16 LGR-TR
Item no.
2005070
Clear internal dimensions
227x177x110
No. of entries
10
Protection rating
IP67
Colour
Grey / transparent
X16 SW
Item no.
2005130
Clear internal dimensions
227x177x110
No. of entries
10
Protection rating
IP67
Colour
Graphite black; RAL 9011
