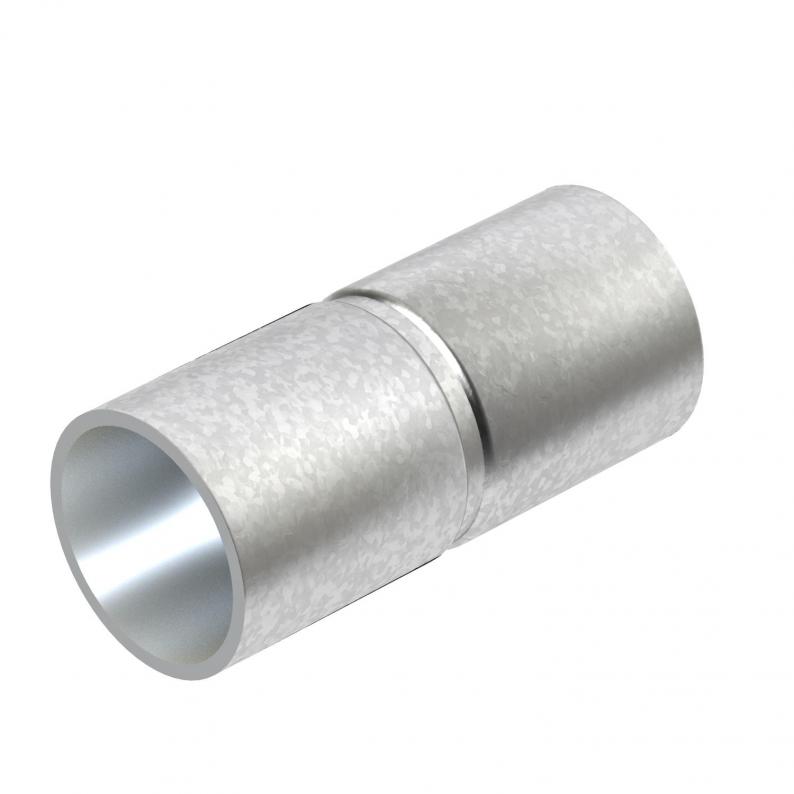

Hot-dip galvanised steel sleeve, without thread

Hot-dip galvanised steel sleeve, without thread

Type SV16W FT | Item no. 2046620 | EAN 4012195782384

Show all variants
Item no. / Type

Smallest selling unit: 25 piece

DescriptionTechnical dataDownloadsVariants

Description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

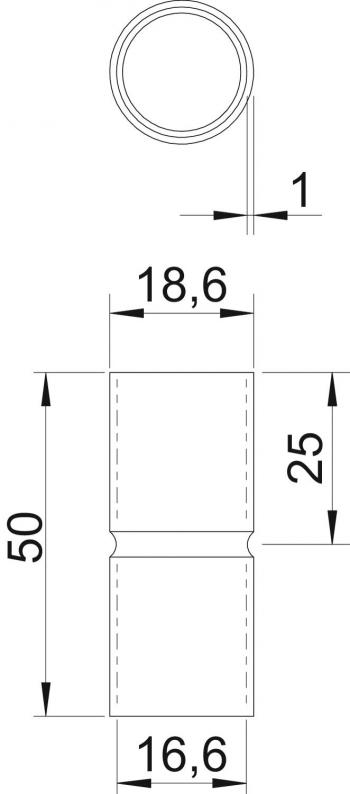

Dimensions

Length50 mm
Dimension L50 mm
Dimension d16,6 mm
Dimension t1 mm
Dimension m (mm)M16
Dimension l25 mm
Dimension D18,6 mm

Technical data

Halogen-freeyes
Size16
Polished surfaceno
Brushed surfaceno
for pipe diameter16 mm
With inspection opening and lidno
Two-partno
Version forConnector
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
DimensionØ16mm
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate0,0795 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

SV16W FT
Item no.
2046620
SV20W FT
Item no.
2046621
SV25W FT
Item no.
2046622
SV32W FT
Item no.
2046623
SV40W FT
Item no.
2046624
SV50W FT
Item no.
2046625
SV63W FT
Item no.
2046626
