Height compensation set (215-270 mm) for UZD250-3 with height 165–220 mm
Type ASH250-3 215270
|Item no. 7410158
|EAN 4012195473275
Item no. / Type
Screed height, min.
Screed height, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

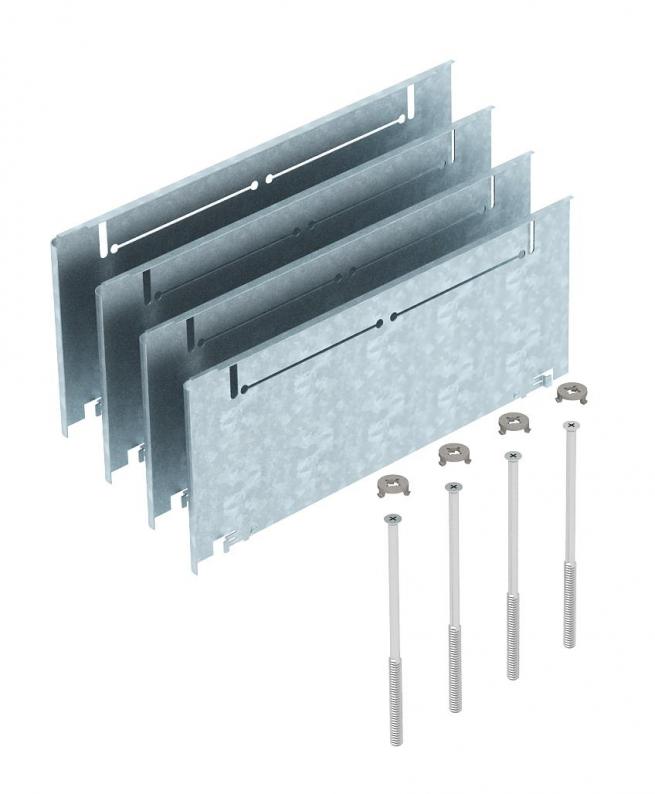

Height compensation set for underfloor boxes UZD250-3 with a construction height of 165 to 220 mm for construction stacking of the UZD to a height of 215-270 mm, consisting of four fall plates, four height adjustment screws and four rotary locks.
Technical data
Technical data
| Screed height, min. | 215 mm |
|---|---|
| Screed height, max. | 270 mm |
| Height-adjustment range, min. | 215 mm |
| Height-adjustment range, max. | 270 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 250 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | no |
| Suitable for underfloor ducts | no |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Lowerable to be flush-floor | no |
| For pipe connection | no |
| Version for | Square |
| Surface | Strip galvanized |
| Material | Steel |

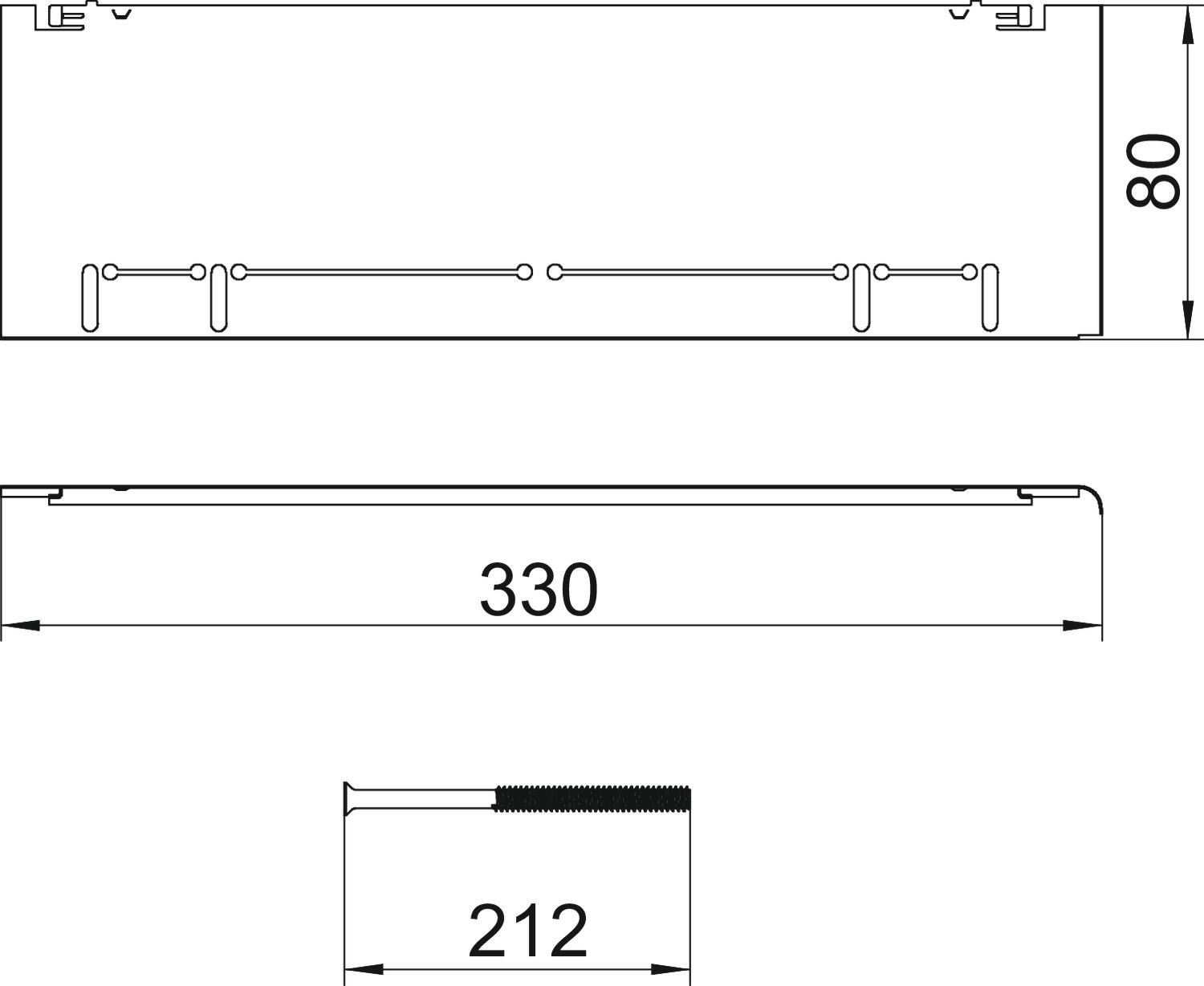

Dimensions
| Dimension A | 330 mm |
|---|---|
| Dimension B | 80 mm |
| Dimension l | 212 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Screed height, min.
Screed height, max.
Item no.
ASH250-3 215270
215
270
7410158
ASH250-3 265320
265
320
7410162
Screed height, min.
Screed height, max.
ASH250-3 215270
Item no.
7410158
Screed height, min.
215
Screed height, max.
270
ASH250-3 265320
Item no.
7410162
Screed height, min.
265
Screed height, max.
320
