Height-compensation kit ASH 350-4 240
Type ASH 350-4 240
|Item no. 7410138
|EAN 4012197364908
Item no. / Type
7410138 / ASH 350-4 240
Smallest selling unit: 1 PU
1PU
PU
Description

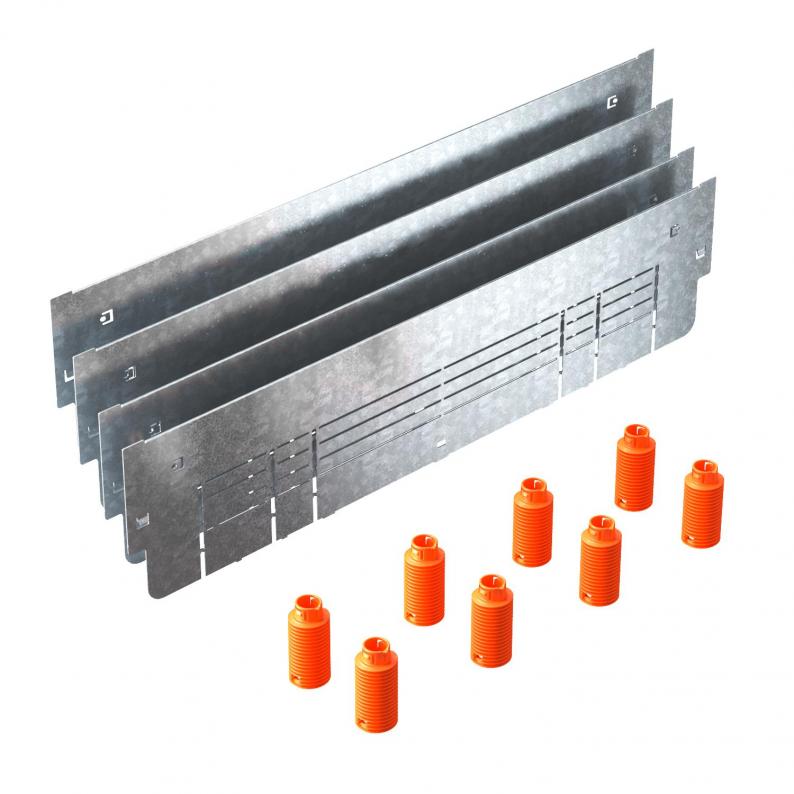

Height-compensation kit for UZD350-4 underfloor boxes with a construction height of 160 to 240 mm for construction-side raising of the UZD.
Technical data
Dimensions
| Length | 450 mm |
|---|---|
| Width | 103 mm |
| Dimension A | 450 mm |
| Dimension B | 103 mm |
| Dimension l | 47,5 mm |
Technical data
| Screed height, min. | 160 mm |
|---|---|
| Screed height, max. | 240 mm |
| Height-adjustment range, min. | 160 mm |
| Height-adjustment range, max. | 240 mm |
| Minimum screed height | 160 |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 350 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | no |
| Suitable for underfloor ducts | no |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Lowerable to be flush-floor | no |
| For pipe connection | no |
| Version for | Square |
| Dimension | 450x103x46 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
3,3837 kg CO2e / 4 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,3837 kg CO2e / 4 Piece |
|---|
