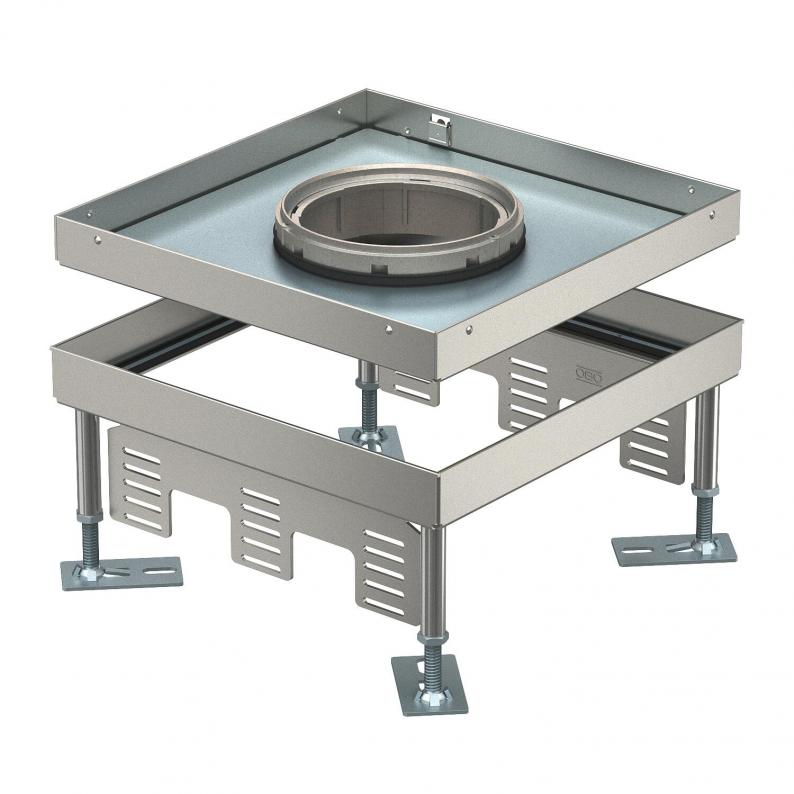

Height-adjustable cassette for tube body, RKFN, stainless steel
Type RKFN3 9 VS 20
|Item no. 7408980
|EAN 4012197278175
Item no. / Type
Floor height, min.
Floor height, max.
Floor covering thickness
Dimension h
Cable outlet version
Lowerable tube body
Nominal size for device installation units
9
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette for tube bodies of nominal size 9 for the installation of devices in duct systems, raised and cavity floors in interior dry or wet-care floors.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed. The tube body is not contained in the scope of delivery.
Three APMT5 cover plates can be installed.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed. The tube body is not contained in the scope of delivery.
Three APMT5 cover plates can be installed.
Technical data

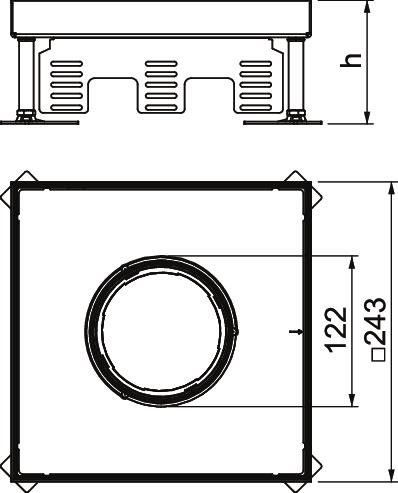

Dimensions
| Length | 243 mm |
|---|---|
| Width | 243 mm |
| Height | 105 mm |
| Dimension h | 105 mm |
Technical data
| Floor height, min. | 105 mm |
|---|---|
| Floor height, max. | 150 mm |
| Floor covering thickness | 20 mm |
| Height-adjustment range, min. | 105 mm |
| Height-adjustment range, max. | 150 mm |
| Number of installable devices | 12 |
| Decouplable | no |
| Length of installation dimensions | 244 mm |
| Wide installation dimensions | 244 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Installation depth | 105 mm |
| Cable outlet version | Lowerable tube body |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | no |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | 9 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP55 |
| Number of universal supports | 3 x UT4 |
| Floor cut-out / Mounting opening | 244x244 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Square |
| Dimension | 243x243x100 |
| Material | Stainless steel |
Environmental Data
22,1925 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 22,1925 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
TUK2 GV
7428140
Smallest selling unit: 1 piece
1piece
piece
UT4 45 4
7408727
Smallest selling unit: 1 piece
1piece
piece
Type
TUK2 GV
Smallest selling unit: 1 piece
1piece
piece
Item no. 7400513
Mounting lid 350, nominal size 9Type
DUG 350-3 9
Smallest selling unit: 1 piece
1piece
piece
Type
UT4 45 4
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)
Variants
Type
Floor height, min.
Floor height, max.
Floor covering thickness
Cable outlet version
Nominal size for device installation units
Dimension h
Item no.
RKFN3 9 VS 20
105
150
20
Lowerable tube body
9
105
7408980
RKFN3 9 VS 25
110
155
25
Lowerable tube body
9
110
7408982
Floor height, min.
Floor height, max.
Floor covering thickness
Dimension h
RKFN3 9 VS 20
Item no.
7408980
Floor height, min.
105
Floor height, max.
150
Floor covering thickness
20
Cable outlet version
Lowerable tube body
Nominal size for device installation units
9
Dimension h
105
RKFN3 9 VS 25
Item no.
7408982
Floor height, min.
110
Floor height, max.
155
Floor covering thickness
25
Cable outlet version
Lowerable tube body
Nominal size for device installation units
9
Dimension h
110
