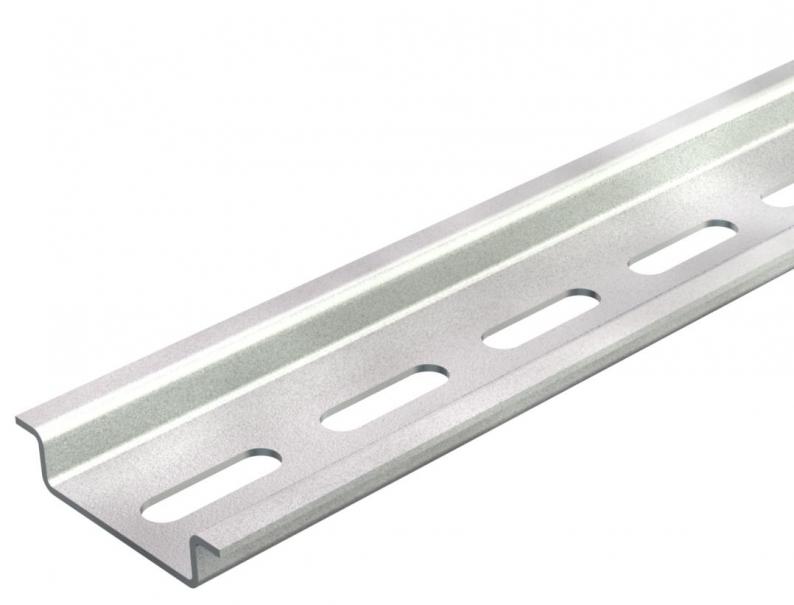

GTPL hat profile rail, perforated
Type 2069 2M GTPL | Item no. 1115669 | EAN 4012195045496
Item no. / Type
Length
Surface
Version for
Perforated
Material
Steel
Smallest selling unit: 2 m
2m
Description
Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 35 mm |
| Height | 7,5 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| Drill hole spacing, centre | 25 mm |
| Version, rails | Support rail DIN EN 60715 |
| Hole shape (ETIM) | Long slot |
| Version for | Perforated |
| Bundle | 50 m |
| Dimension | 2000x35x7,5 |
| Surface | Electrogalvanized, transparently passivated |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6257 kg CO₂e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Version for
Surface
Material
Item no.
2069 2M GTPL
2000
Perforated
Electrogalvanized, transparently passivated
Steel
1115669
2069 L 2M FS
2000
Perforated
Strip galvanized
Steel
1115804
Surface
2069 2M GTPL
Item no.
1115669
Length
2000
Version for
Perforated
Surface
Electrogalvanized, transparently passivated
Material
Steel
2069 L 2M FS
Item no.
1115804
Length
2000
Version for
Perforated
Surface
Strip galvanized
Material
Steel
