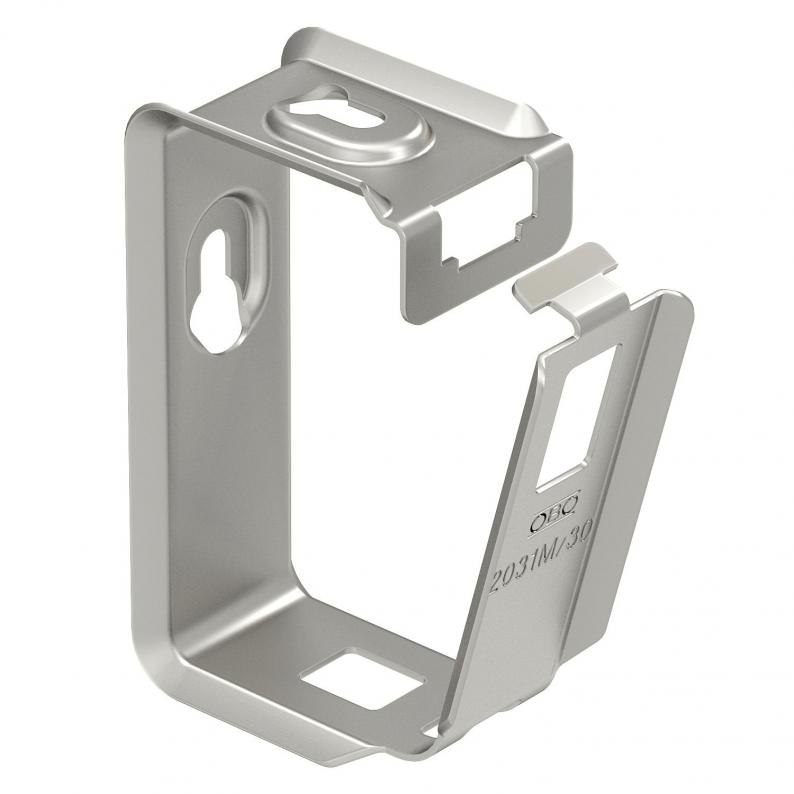

Grip collection clamp, metal 30 A4

Grip collection clamp, metal 30 A4

Type 2031 M 30 A4 | Item no. 2207140 | EAN 4012195809463

Show all variants
Item no. / Type
2207140 / 2031 M 30 A4
No. of conductors NYM 3 x 1.5
30

Smallest selling unit: 25 piece

DescriptionTechnical dataDownloadsVariants

Description

Metal grouped support for high mechanical stability, even in case of fire. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical function to DIN 4102 Part 12. For wall and ceiling mounting. Lock can be opened without tools. Detailed information on the approved routing variants can be found in the appropriate testing documentation.
  • Underwriters Laboratories Inc., USA
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • OBO Grip, wall routing type
  • OBO Grip, ceiling routing type
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Maintain electrical functionsyes
No. of conductors NYM 3 x 1.530
Halogen-freeyes
With anchorno
Dimension30x NYM3x1,5
SurfaceBright, treated
MaterialStainless steel 1.4571
CO2 Footprint (GWP) Cradle-to-Gate0,4539 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

2031 M 30 A4
Item no.
2207140
No. of conductors NYM 3 x 1.5
30
