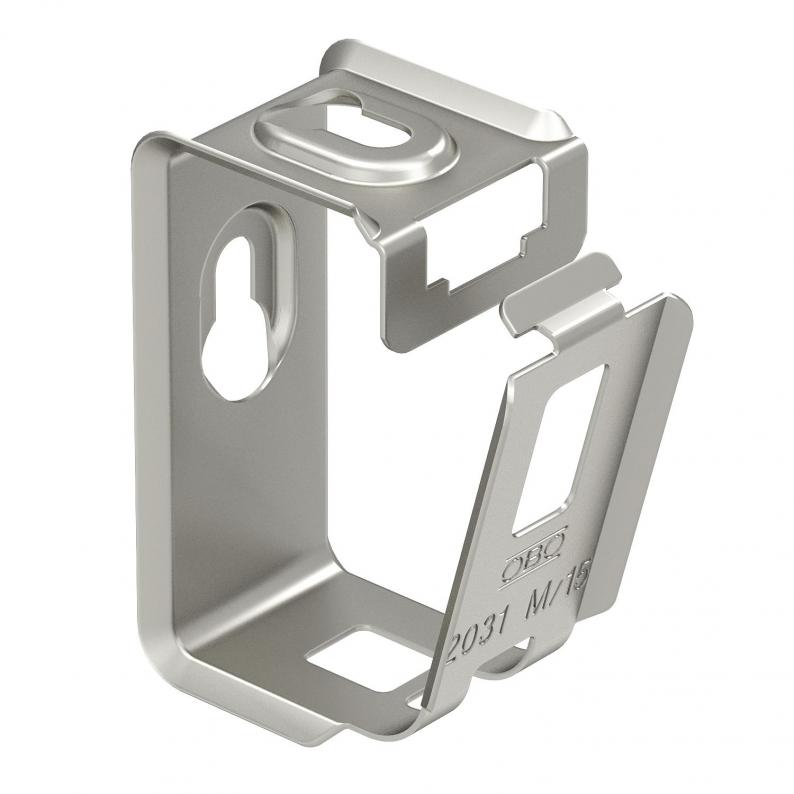

Grip collection clamp, metal 15 A2

Grip collection clamp, metal 15 A2

Type 2031 M 15 A2 | Item no. 2207080 | EAN 4012195809395

Show all variants
Item no. / Type
2207080 / 2031 M 15 A2
No. of conductors NYM 3 x 1.5
15

Smallest selling unit: 50 piece

DescriptionTechnical dataDownloadsVariants

Description

Metal grouped support for high mechanical stability, even in case of fire. Suitable for secure mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical function to DIN 4102 Part 12. For wall and ceiling mounting. Lock can be opened without tools. Detailed information on the approved routing variants can be found in the appropriate testing documentation.


  • Underwriters Laboratories Inc., USA
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • OBO Grip, wall routing type
  • OBO Grip, ceiling routing type
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Maintain electrical functionsyes
No. of conductors NYM 3 x 1.515
Halogen-freeyes
With anchorno

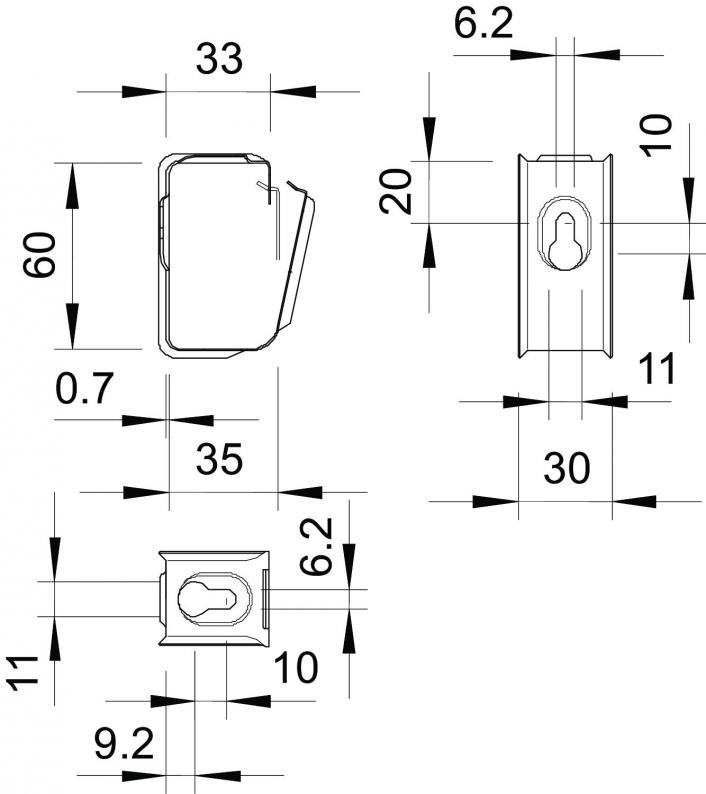

Dimension15x NYM3x1,5
SurfaceBright, treated
MaterialStainless steel 1.4301
CO2 Footprint (GWP) Cradle-to-Gate0,2226 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

2031 M 15 A2
Item no.
2207080
No. of conductors NYM 3 x 1.5
15
