Grip 40
Type 2031 40
|Item no. 2205416
|EAN 4012195651666
Item no. / Type

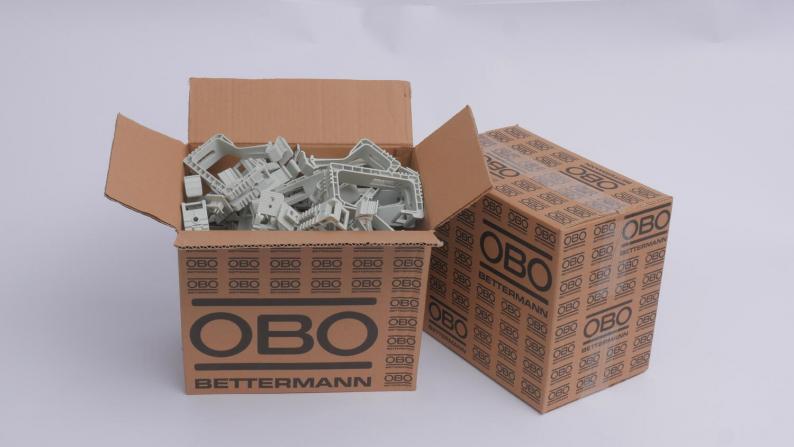

Smallest selling unit: 25 piece
25piece
piece
Description

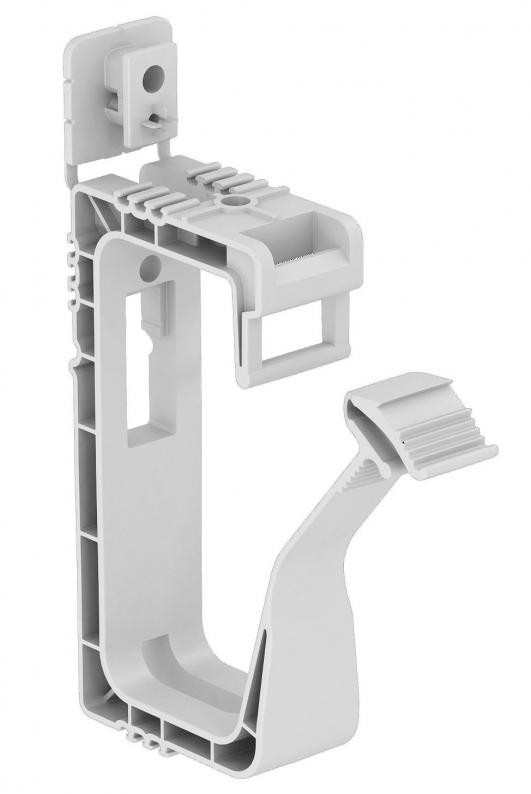

Collection clamp with pointed fastening element, for mounting up to 40 cables NYM 3 x 1.5 mm2 on walls or ceilings. Fastening with impact anchor or push-fit anchor. Also suitable for the fastening with gas- and battery-operated setting tools of the brands Bosch, Fischer and Spit (inner nose diameter Ø 7 mm). Fastening hole: Ø 6 mm. Recommended fastening distance of 250–400 cm when fully assigned, depending on the respective national specifications/norms.
With multifunctional fastening element. Capacity: 2031/ 40 max. 40 cables NYM 3 x 1.5 mm²
With multifunctional fastening element. Capacity: 2031/ 40 max. 40 cables NYM 3 x 1.5 mm²
Technical data
Technical data
| Maintain electrical functions | no |
|---|---|
| No. of conductors NYM 3 x 1.5 | 40 |
| Halogen-free | yes |
| Flame-resistant version | no |
| With anchor | no |
| Breaking load | 0,32 kN |
| Dimension | 40x NYM3x1,5 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
Environmental Data
0,1352 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1352 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
No. of conductors NYM 3 x 1.5
Item no.
2031 40
40
2205416
2031 40 SP
40
2205420
2031 40
Item no.
2205416
No. of conductors NYM 3 x 1.5
40
2031 40 SP
Item no.
2205420
No. of conductors NYM 3 x 1.5
40
