Grip 20 flame-resistant
Type 2031 F 20 | Item no. 2205412 | EAN 4012195651659
Item no. / Type
2205412 / 2031 F 20
No. of conductors NYM 3 x 1.5
20
Smallest selling unit: 50 piece
50piece
Description

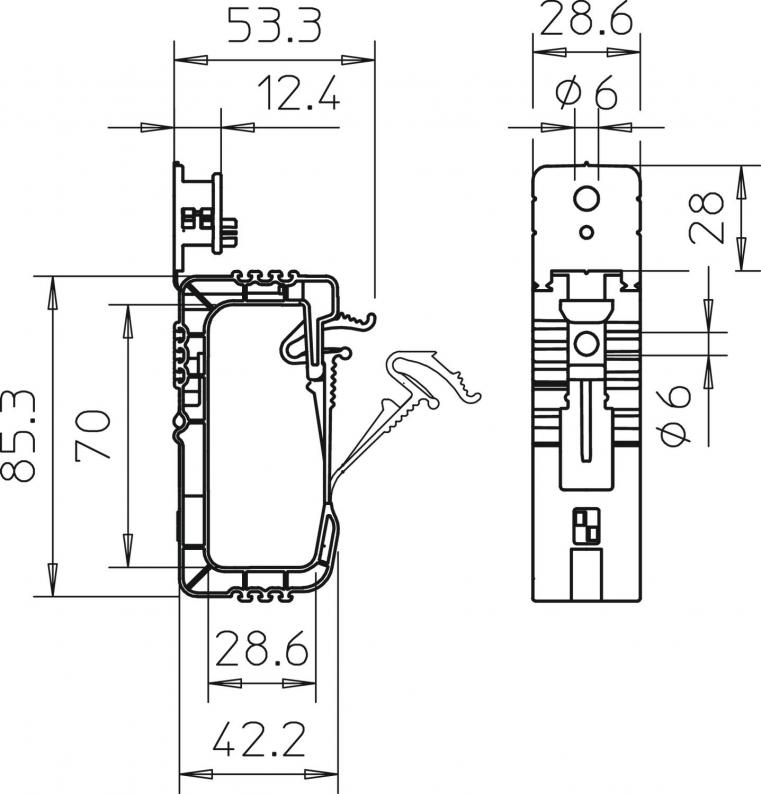

Cable tidy with moulded fastening element, for mounting up to 20 cables NYM 3 x 1.5 mm2 on walls or ceilings. Fastening with impact anchor or push-fit anchor. Fastening hole: Ø 6 mm. Recommended fastening distance of 250–400 cm when fully assigned, depending on the respective national specifications/norms. Flame resistant to DIN VDE 0471/DIN IEC 695 Part 2-1, test temperature 960 °C.
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
Technical data
Technical data
| Maintain electrical functions | no |
|---|---|
| No. of conductors NYM 3 x 1.5 | 20 |
| Halogen-free | yes |
| Flame-resistant version | yes |
| With anchor | no |
| Breaking load | 0,32 kN |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 960 °C |
| Dimension | 20x NYM3x1,5 |
| Material | Polypropylene |
| Colour | Stone grey; RAL 7030 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0941 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
No. of conductors NYM 3 x 1.5
Item no.
2031 F 20
20
2205412
2031 F 20
Item no.
2205412
No. of conductors NYM 3 x 1.5
20
