Grip 10
Type 2031 10 | Item no. 2205380 | EAN 4012196773572
Item no. / Type
2205380 / 2031 10
No. of conductors NYM 3 x 1.5
10
Smallest selling unit: 50 piece
50piece
Description

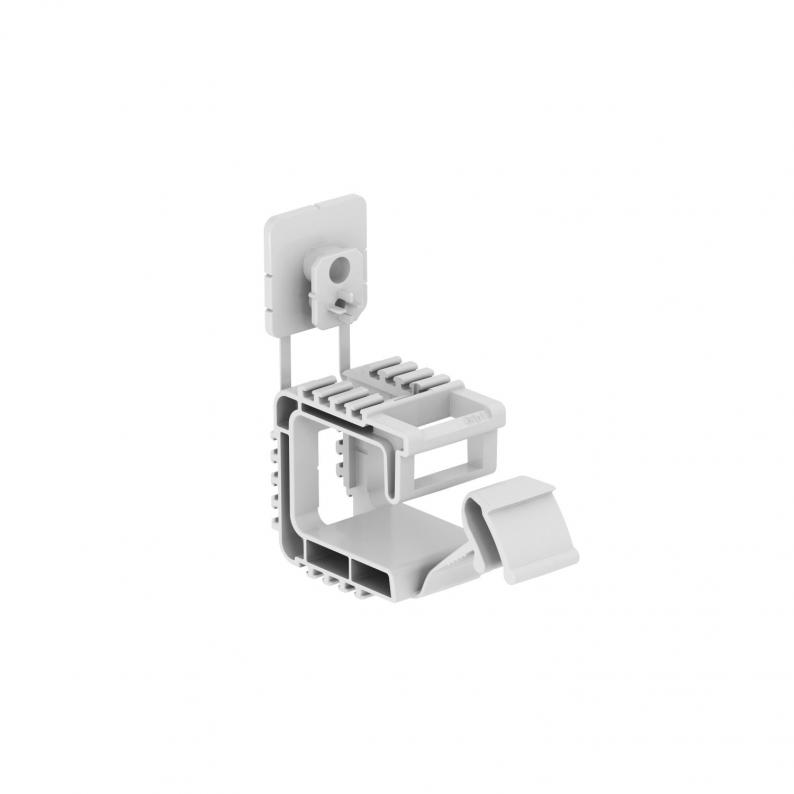

Cable tidy for general use with fastening holes of Ø 6 mm, suitable for wall and ceiling mounting. The moulded fastening element can be fastened using knock-in anchors or a gas pressure nail gun. The recommended fastening spacing when assigned fully is 50 to 60 cm.
Capacity:
2031/ 10 max. 10 cables NYM 3 x 1.5 mm²
Capacity:
2031/ 10 max. 10 cables NYM 3 x 1.5 mm²
Technical data
Technical data
| Maintain electrical functions | no |
|---|---|
| No. of conductors NYM 3 x 1.5 | 10 |
| Halogen-free | yes |
| Flame-resistant version | no |
| With anchor | no |
| Breaking load | 0,32 kN |
| Dimension | 10x NYM3x1,5 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0552 kg CO2e / 1 Piece |
